Dredging Steel Pipe Product Brochure
Product Overview
Dredging Steel Pipes, primarily manufactured using Submerged Arc Welding (SAW) technology, are the backbone of modern hydraulic engineering. Also known as spiral steel pipes, these robust pipelines are engineered to transport abrasive mixtures like sediment, sludge, and slurry over long distances. With superior structural integrity and customizable specifications, they are the standard solution for heavy-duty dredging operations, land Reclamation, and underwater infrastructure projects.
Key Applications
Our steel pipes are designed to handle the most demanding environments, serving critical roles in:
Port & Waterway Construction: Excavation of port basins, approach channels, and fairways.
Land Reclamation: Transporting fill material for the creation of new land for ports, industrial zones, and coastal urban development.
Water Conservancy: Flood control, reservoir desilting, and river channel regulation.
Environmental Restoration: Improving water environments in rivers, lakes, and seas through sediment removal.
Underwater Infrastructure: Construction and backfilling of underwater pipeline trenches and cable protection.
Resource Transport: Long-distance conveyance of natural gas, oil, and industrial slurries.
Technical Specifications
We offer a comprehensive range of specifications to meet international standards (SY/T5037-2018, GB/T9711-2017).
| Feature | Specification Details |
|---|---|
| Product Type | Spiral Submerged Arc Welded (SSAW) Pipe |
| Diameter Range | 219mm – 3020mm (8" – 120") |
| Wall Thickness | 6mm – 18mm (Customizable based on pressure requirements) |
| Standard Materials | Q235A/B, 16Mn (Q345), X42-X80 (L290-L555), 10#, 20# |
| Connection Type | Flanged connections (Plain flanges or reinforced) |
| Length | Single joints typically 6m – 12m (or as per project requirement) |
Core Performance Advantages
Engineered for Abrasion Resistance
Dredging involves the high-velocity transport of sand and gravel. Our pipes utilize high-strength steel grades (up to X80) and specialized welding techniques to withstand the linear increase in wear rates caused by high flow velocities (e.g., >4.0 m/s).
Robust Manufacturing Technology
Produced using advanced Submerged Arc Welding (SAW) technology. This process ensures consistent weld quality, deep penetration, and high production efficiency, making it the primary method for critical steel structures.
High Pressure & Load Capacity
Unlike flexible hoses, steel pipes provide rigid structural support, capable of withstanding high internal working pressures and external loads, making them ideal for deep-water pipelines and buried applications.

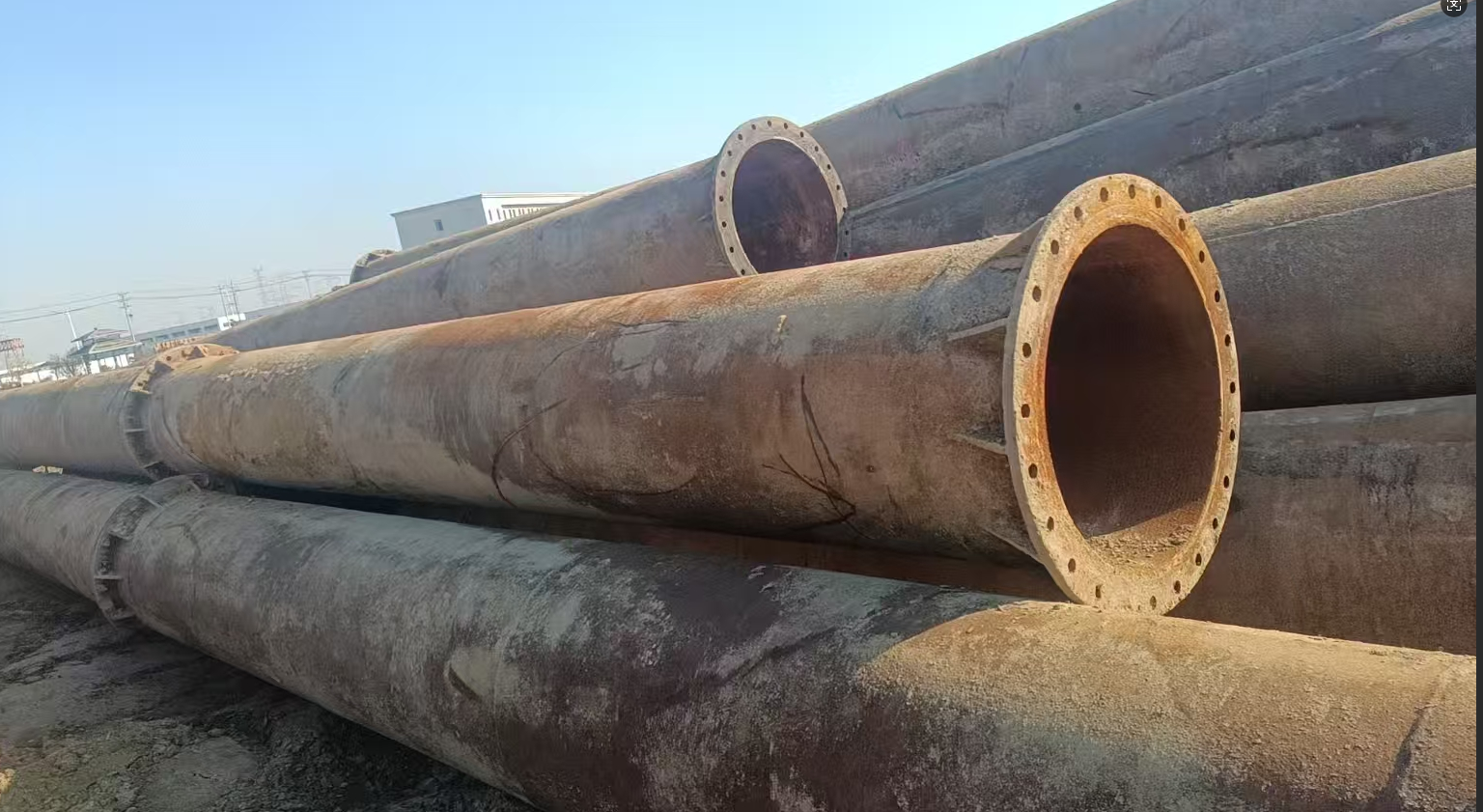

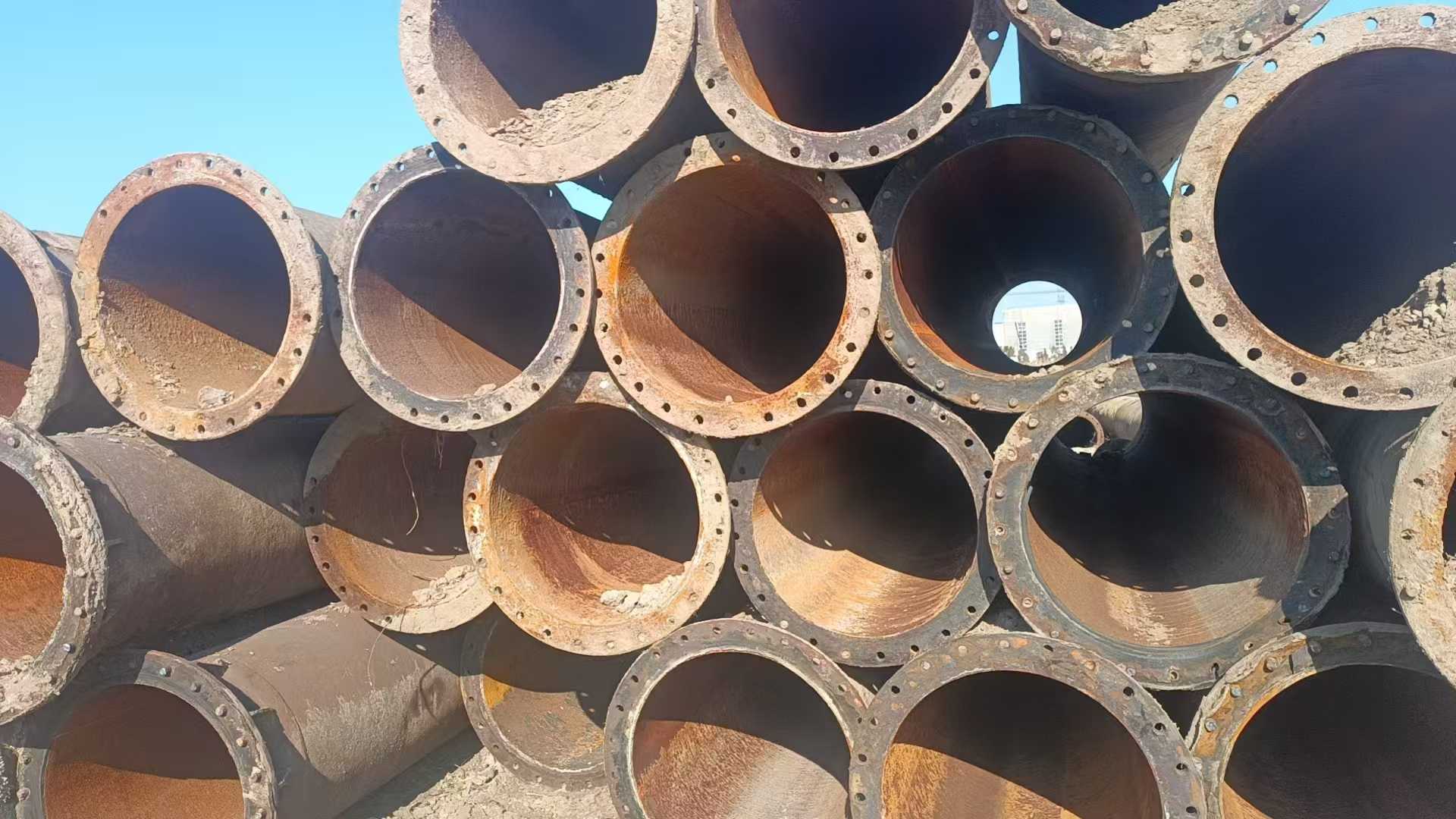

Customizable Flange Connections
We supply pipes with integrated flanges (compliant with GB, EN, ANSI, JIS standards). These connections ensure a rigid, leak-proof seal essential for high-pressure discharge lines onshore and offshore.
Versatile Material Grades
Available in various carbon steels and low-alloy high-strength steels (such as 16Mn), allowing engineers to select the exact grade required for specific corrosion and pressure environments.
Manufacturing Process
Our production line ensures precision and quality at every step:
Raw Material Inspection: Strict selection of steel strips/coils.
Forming: Cold forming of steel strips into a spiral shape.
Welding: Double-sided Submerged Arc Welding (SAW) for maximum strength.
Hydrostatic Testing: 100% pressure testing to ensure leak-tight integrity.
Finishing: End bevelling, flange welding, and anti-corrosion coating (if required).
Industry Heritage
Mechanical dredging has evolved significantly since its inception in 1600. From the early days of bucket dredgers to modern Cutter Suction Dredgers, steel piping has remained the constant, reliable choice for infrastructure. With a history of usage in major projects like the Huangpu river dredging (since 1889), steel pipes continue to be the material of choice for projects requiring longevity and structural stability.
Steel Pipe stands as the core and preferred piping material for Dredging engineering, as its inherent advantages perfectly align with the harsh working conditions of dredging operations—including high wear, high pressure, and complex marine environments. Its core merits can be condensed into seven key aspects, making it irreplaceable compared to HDPE, FRP, cast iron pipes and other alternatives. 1. Superior Strength & Wear Resistance Dredging media such as sediment, pebbles and gravel cause severe scouring and abrasion to pipelines, the primary cause of pipe failure. Steel pipe boasts far stronger tensile, compressive and impact resistance than alternative materials, enduring long-term high-speed sediment scouring. Its wear resistance can be further enhanced via thickened walls or wear-resistant alloy/ceramic linings, cutting down pipe replacement frequency drastically for both shallow and deepwater dredging. 2. Excellent High-Pressure Bearing Capacity Long-distance discharge via Cutter Suction Dredgers, Trailing Suction Hopper Dredgers and other mainstream equipment generates internal pressure up to several megapascals, with sustained pressure loss across extended distances. Steel pipe’s exceptional pressure resistance eliminates bursting and deformation, fully meeting deepwater, high-pressure and long-discharge demands. In contrast, HDPE and FRP pipes only bear 1/3 to 1/2 of steel pipe’s pressure capacity, unfit for high-pressure long-haul transport. 3. High Rigidity for Complex Underwater/Offshore Installation Dredging pipelines (floating, intertidal submerged, submarine) endure long-term wave impacts, current scouring and external drag, requiring high structural stability. Steel pipe features high rigidity and minimal deflection, with stable structure and low deformation/fracture risks, making it the only reliable option for critical pipelines. Flexible HDPE Pipes stretch and deform under wave drag, while FRP pipes have poor impact resistance and are vulnerable to damage in complex conditions. 4. Reliable Sealing for Large-Diameter & Long-Line Construction Most dredging Discharge Pipelines are large-diameter (φ400–1200mm and above) and long-distance, demanding tight sealing and efficient construction. Steel pipe supports on-site welding or flange connections, both delivering high strength and premium sealing to prevent mud and water leakage. Welding enables continuous large-diameter pipeline laying, with convenient later maintenance and rerouting, outperforming HDPE and FRP pipes in connection sealing and efficiency. 5. Customizable Seawater Corrosion Resistance Most Dredging Projects operate in seawater or brackish water, where chloride and salt induce severe corrosion that shortens ordinary pipes’ service life. Steel pipe can be equipped with dual anti-corrosion protection: external coatings (coal tar epoxy, polyethylene) and internal anti-corrosion/wear-resistant layers (epoxy resin, wear-resistant coatings). With proper treatment, it can serve 10–20 years in seawater, far longer than untreated alternatives. 6. Complete Specifications for Versatile Matching Dredging engineering involves diverse equipment (dredgers, discharge Pumps, floating devices) requiring varied pipe diameters, wall thicknesses and strength grades. Steel pipe offers full customization, ranging from small φ200mm pipelines to large main pipes over φ2000mm, with adjustable strength grades to fit all dredging systems. HDPE and FRP pipes lack large-diameter supply, failing to meet large-scale project demands. 7. Aging Resistance & Long-Term Cost-Effectiveness Long-term outdoor/water exposure subjects pipelines to UV radiation, temperature fluctuations and weathering-induced aging. Steel pipe has stable material properties, strong UV and aging resistance, and good temperature adaptability, with no material degradation in prolonged outdoor use. With routine anti-corrosion maintenance, it lasts 15–20 years, with lower overall costs than frequently replaced HDPE and FRP pipes, delivering remarkable cost-effectiveness. One-Sentence Summary Steel pipe dominates dredging engineering thanks to its high strength, wear/pressure resistance, stable rigidity, reliable sealing, seawater corrosion resistance, complete specifications and long service life. It adapts seamlessly to sediment scouring, high-pressure transport and complex offshore/submarine installation, making it the most economical and practical piping choice for dredging works.
