EX1200 Backhoe Dredger Specs
Boom length: 16.5m
Forearm length: 11m
Spuds length: 28m
Total running time: Around 21000 hours
Main engine: Brand new Shanghai Diesel Engine Group Co, 760HPs
Dredging hull depth: 2.9m
Operating draft: 1.6m
Dredging working conditions (2 types):
① Effective dredging depth 20m, matching bucket capacity ≥2.0m³
② Effective dredging depth 14m, matching bucket capacity ≥3.5m³
Equipped dredging buckets: 3.5m³, 2.0m³
Core application: Harbor pool, waterway, berth Dredging Construction
Harbor basin, waterway & berth dredging
Small‑scale coastal sediment & silt removal
Port maintenance & shallow water excavation
Nearshore foundation & cofferdam cleaning
confined water & small port dredging works
EX1200 heavy‑duty backhoe with strong digging performance
Two working depths: 14m (3.5m³ bucket) & 20m (2.0m³ bucket)
Long reach: boom 16.5m, forearm 11m for wide working range
28m long spuds for stable positioning in operation
New 760HP engine for reliable & efficient power
Shallow draft 1.6m suitable for shallow water areas
Compact size (28.8m×12.8m), flexible & easy mobilization

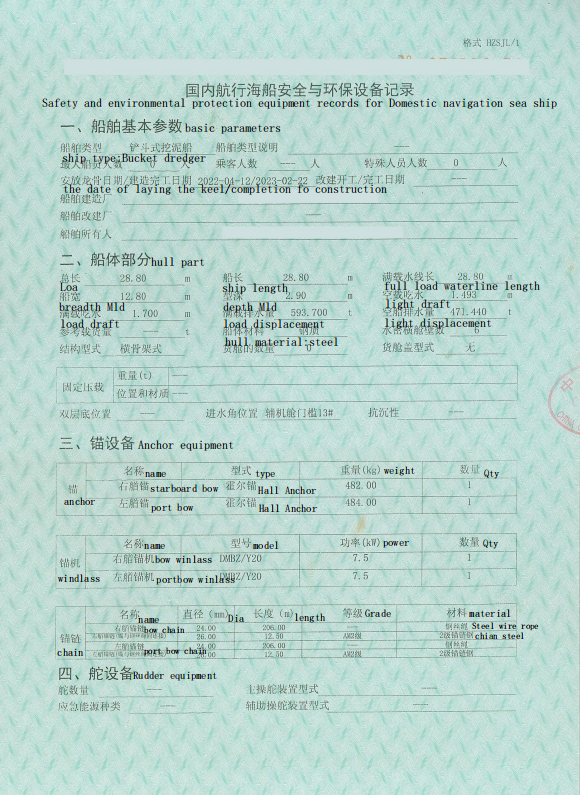

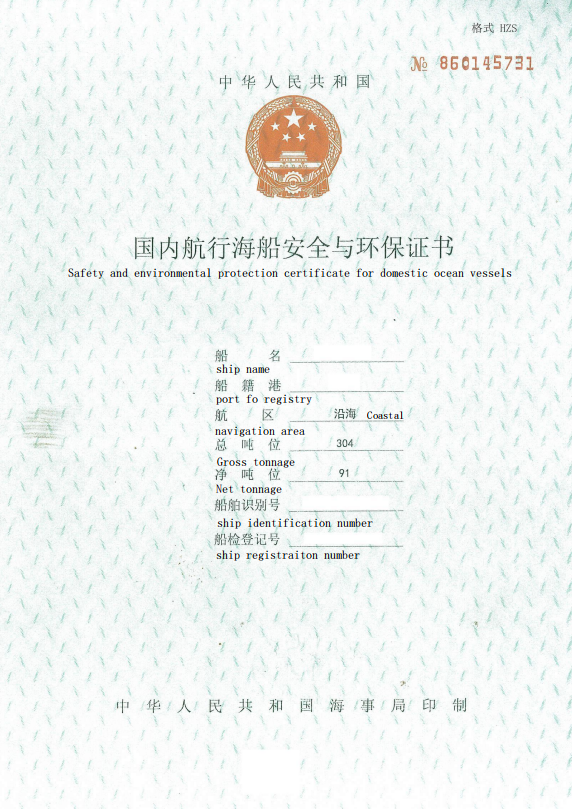

CCS certified, valid coastal operation certificate
Simple structure, easy operation & low maintenance
Built 2023, well‑maintained, low working hours
