Technical Specification & Application Guide: Trailing Suction Hopper Dredger Drag Head

1. Product Overview

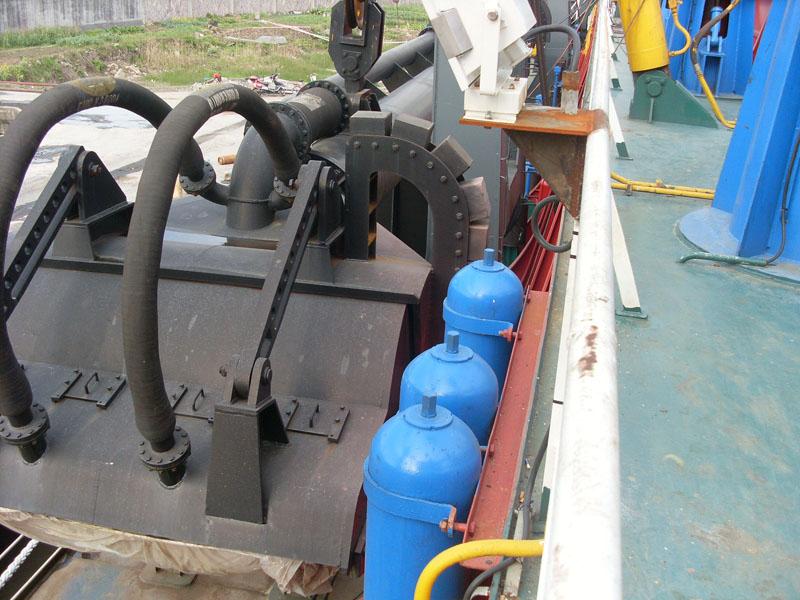

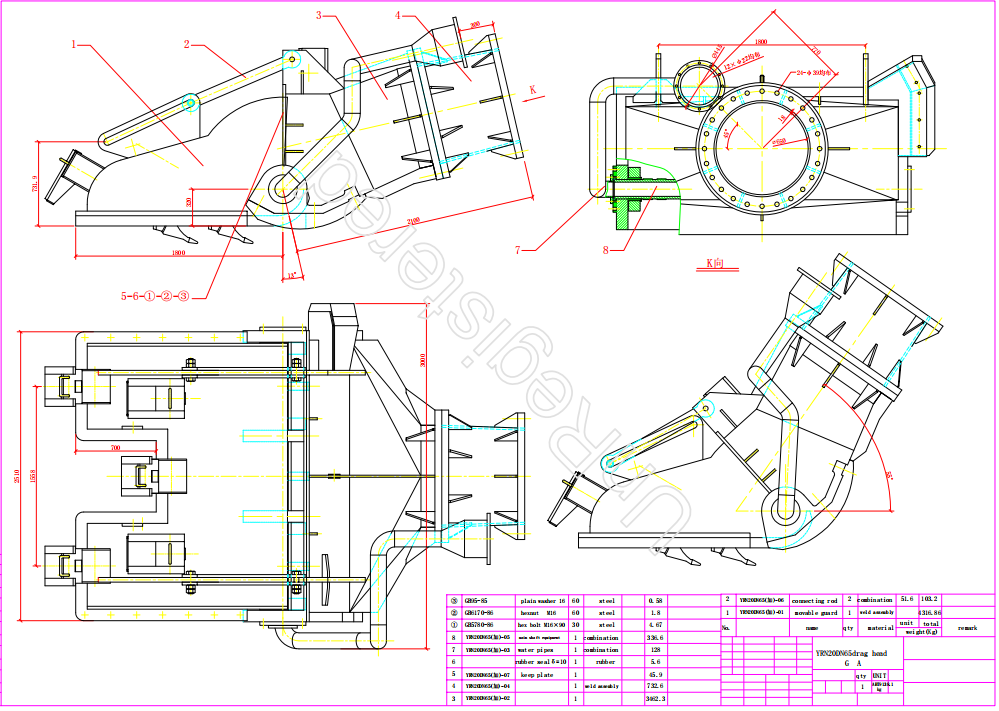

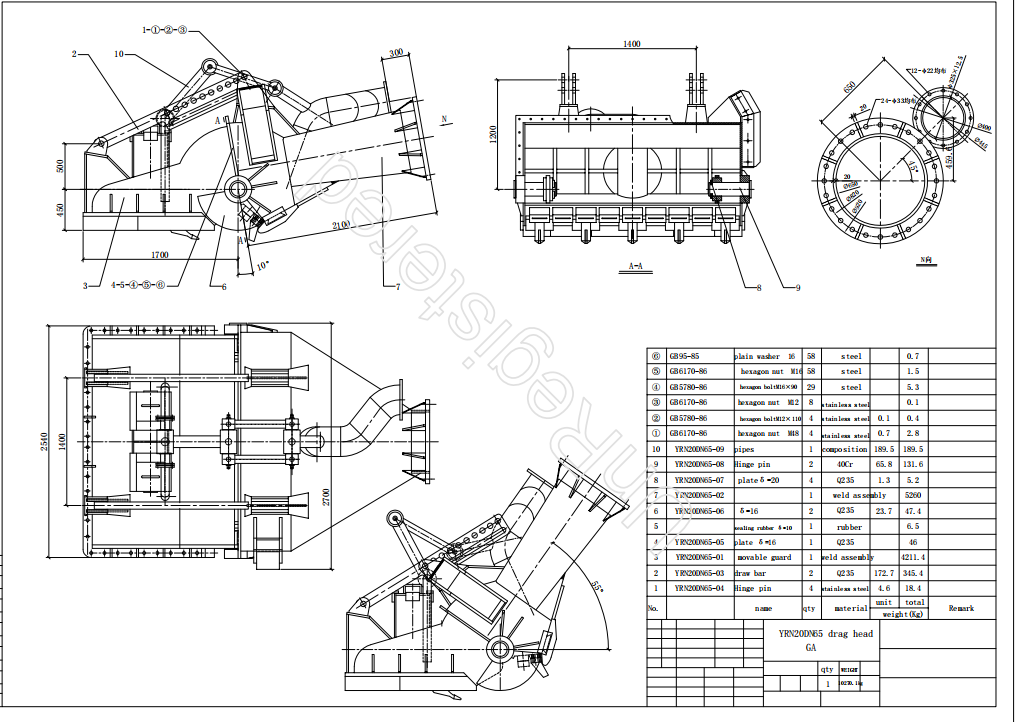

The Drag Head is the primary excavation interface for a Trailing Suction Hopper Dredger (TSHD). Mounted at the lower end of the suction pipe (drag arm), it serves as the critical link between the seabed and the vessel’s pumping system.

Its primary function is to loosen soil and mix it with water to create a transportable slurry, which is then drawn into the hopper via the vacuum created by the Dredge Pumps. The drag head is designed to glide over the seabed, optimizing the intake of material while minimizing turbulence and spillage.

2. Design Variations by Soil Type

To maximize production efficiency, drag heads are customized based on the specific geological conditions of the Dredging site.

Flushing Type Drag Head (For Loose Sand & Silt)

Application: Designed for non-cohesive soils like loose sand, gravel, and silt.

Feature: Equipped with high-pressure water jets (nozzles) that fluidize the soil, reducing friction and helping the material flow into the suction mouth. This prevents clogging and ensures a steady slurry density.

Excavating Type Drag Head (For Soft Clay & Loam)

Application: Used for semi-hard materials such as soft clay, loam, and compacted sand.

Feature: Incorporates stationary cutting teeth or a serrated lip at the suction inlet. These teeth break the shear strength of the soil, allowing the vacuum to pull the material apart and into the pipe.

Active Dredging Type Drag Head (For Hard Clay & Rock)

Application: Essential for hard clay, cemented sand, or weathered rock layers where passive suction is insufficient.

Feature: Equipped with a rotating cutter mechanism or heavy-duty hydraulic teeth that actively fracture the hard strata ahead of the suction mouth, significantly increasing production in difficult grounds.

Deepwater Sand Mining Head (For Offshore Borrow Pits)

Application: Specialized for deep-sea sand extraction (depths up to 120m+).

Feature: Typically features an extra-wide suction mouth to maximize the catchment area, ensuring efficient recovery of valuable construction sand from deep borrow pits.

3. Key Applications

The drag head is a versatile tool utilized across a wide spectrum of maritime and civil engineering projects.

Port and Channel Maintenance

Removing accumulated silt and sediment from shipping lanes, berths, and turning basins to maintain safe navigational depths for vessels.

Land Reclamation

Extracting sand and fill material from offshore borrow areas and transporting it to reclamation sites to create new land for urban or industrial development.

Deep-Sea Sand Mining

Harvesting high-quality marine sand resources used as aggregates for concrete and large-scale infrastructure projects.

Coastal Defense and Nourishment

Pumping sand onto eroding beaches to restore coastlines and provide flood protection (beach nourishment).

4. Operational Parameters

The performance of the drag head is influenced by several critical factors that must be balanced during operation.

Suction Velocity: The speed of the water flow through the drag head must be high enough to lift the particles but low enough to prevent excessive wear.

Trailing Speed: The vessel’s speed over the ground must be synchronized with the pump capacity. Moving too fast results in thin slurry; moving too slow causes clogging or "ploughing."

Vacuum Pressure: The dredge pump must generate sufficient vacuum to lift the heavy mixture of soil and water through the vertical drag arm.

Soil Compatibility: The choice of drag head (flushing vs. excavating) is the single most important factor in determining project efficiency.

5. Maintenance & Safety

Wear Inspection: Regularly inspect the wear plates, rubber seals, and teeth. Excessive wear reduces the vacuum seal against the seabed, leading to production loss.

Nozzle Check: For flushing heads, ensure all water jet nozzles are clear of debris to maintain proper soil fluidization.

Lifting Safety: When deploying or retrieving the drag head, ensure all personnel are clear of the swing radius and that the drag arm is securely locked.
