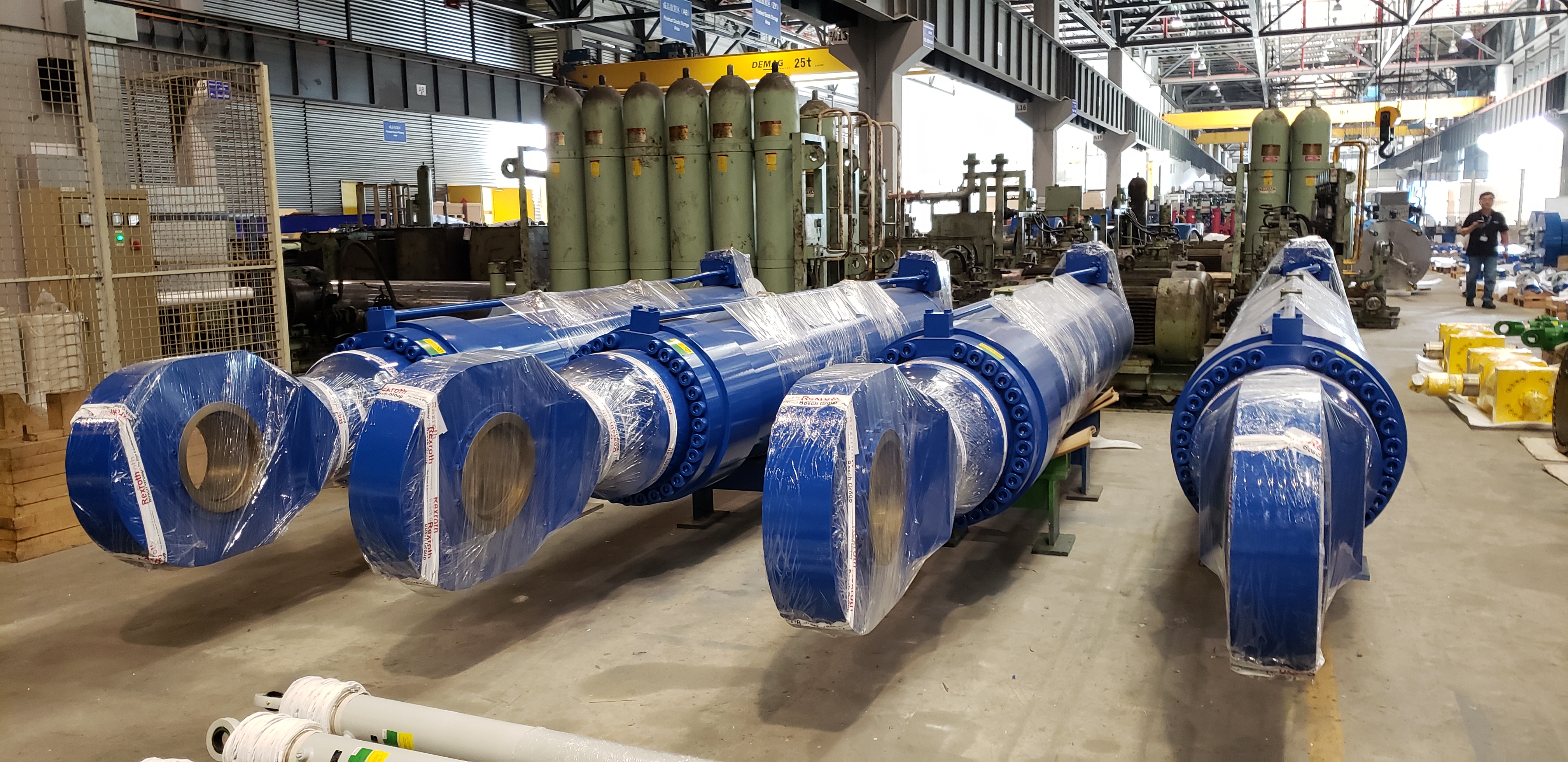

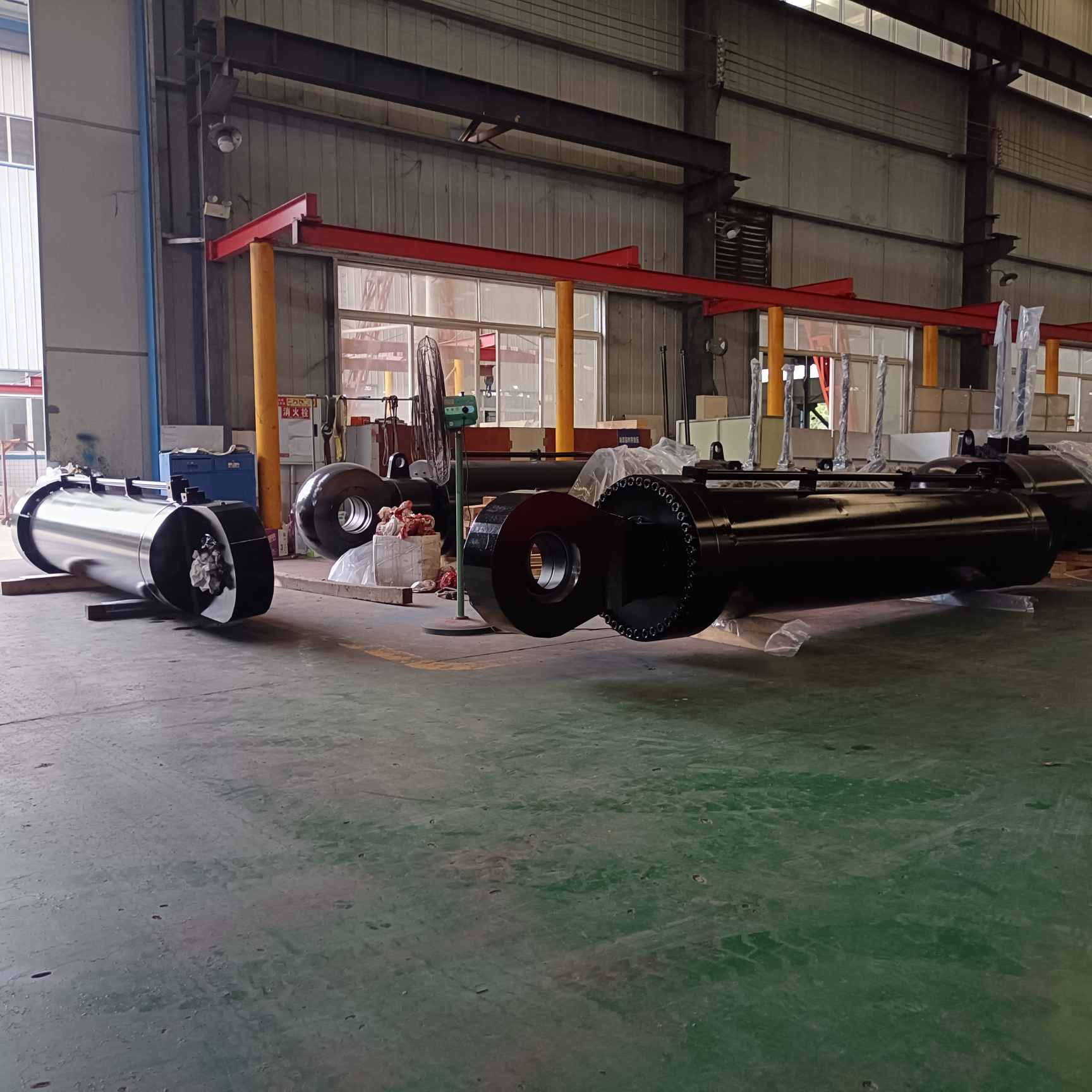

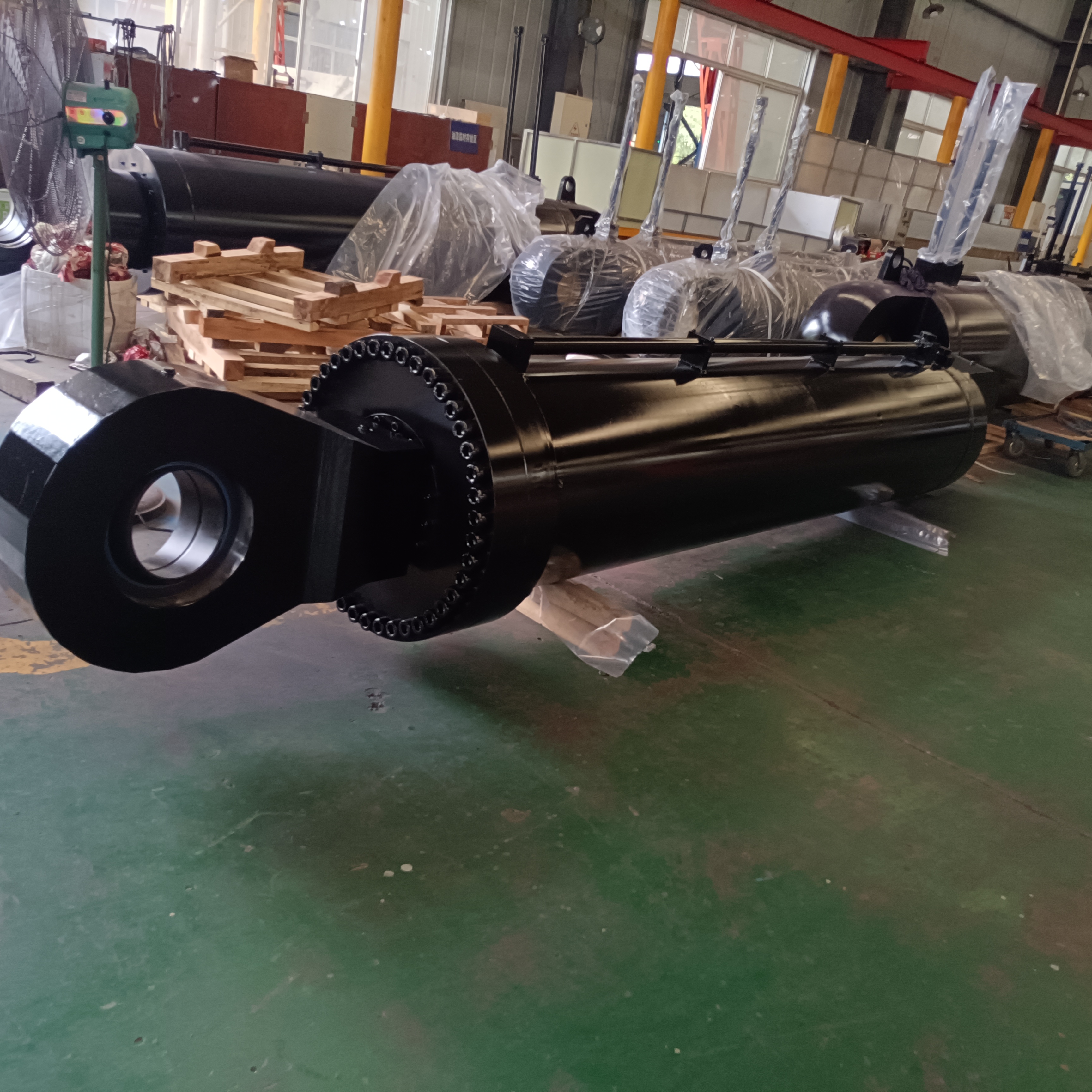

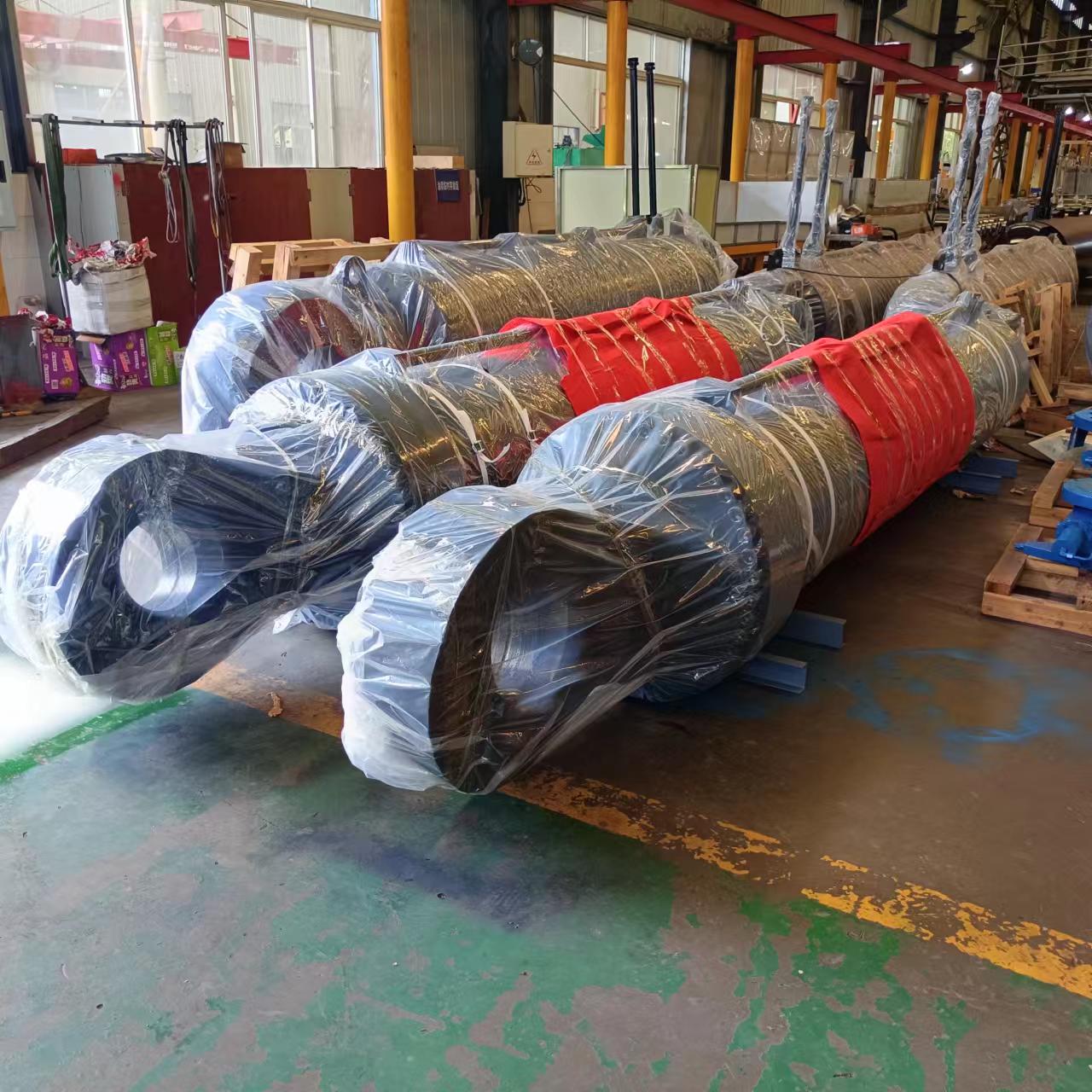

Hydraulic Cylinders for Split-Hopper Barges
The hydraulic cylinder is the core actuator and the primary source of power for a split-hopper barge's cargo handling system. It functions as the vessel's main "muscle," responsible for the controlled opening and closing of the two symmetrical hull halves.
This specialized cylinder is engineered to operate under extreme conditions, providing immense force to manage the heavy loads associated with dredged materials. Its primary functions are twofold:
Closing & Locking: During loading and transportation, the cylinder exerts a powerful clamping force to hold the two hull halves tightly together. This ensures the cargo hold is sealed, preventing any leakage of slurry, sand, or rock.
Opening & Discharging: Upon reaching the designated disposal site, the hydraulic system activates the cylinder to push the hull halves apart. They rotate outwards on hinge axes, allowing the cargo to be discharged rapidly and efficiently by gravity.
These cylinders are built for durability in harsh marine environments, often featuring advanced corrosion-resistant coatings and robust sealing systems to withstand constant exposure to seawater and heavy operational stress.
Applications
The hydraulic cylinder is the enabling technology that defines the split-hopper barge's function. Its applications are therefore central to all major Dredging and marine construction projects.
Port and Waterway Maintenance
Used extensively in the disposal of dredged sediments from ports, harbors, and shipping channels. The cylinder's reliable operation allows for the rapid clearing of silt and sand to maintain safe navigational depths.
Land Reclamation
Essential for projects that create new land. The barge transports fill material (sand, clay) to the reclamation site, where the hydraulic cylinders facilitate the precise and controlled discharge of material to build up the seabed.
Offshore Construction
Plays a critical role in offshore projects, such as trenching for subsea pipelines or creating foundations for wind turbines. The barge can accurately deposit rocks or other materials onto the seabed at specific locations, a process entirely dependent on the cylinder's control.
Environmental Dredging
Used for the safe disposal of contaminated sediments. The controlled opening action, powered by the hydraulic cylinder, allows for the careful placement of polluted material into designated, contained disposal areas, minimizing environmental impact.
