We can customize the Ladder Box or provide the complete Assembly as per the client's requirements.

Our professional team and mature factory are capable of handling the entire process from design, production, and delivery to full system commissioning and on-site installation.

We are fully familiar with the operation of all components and ensure complete debugging and seamless integration.

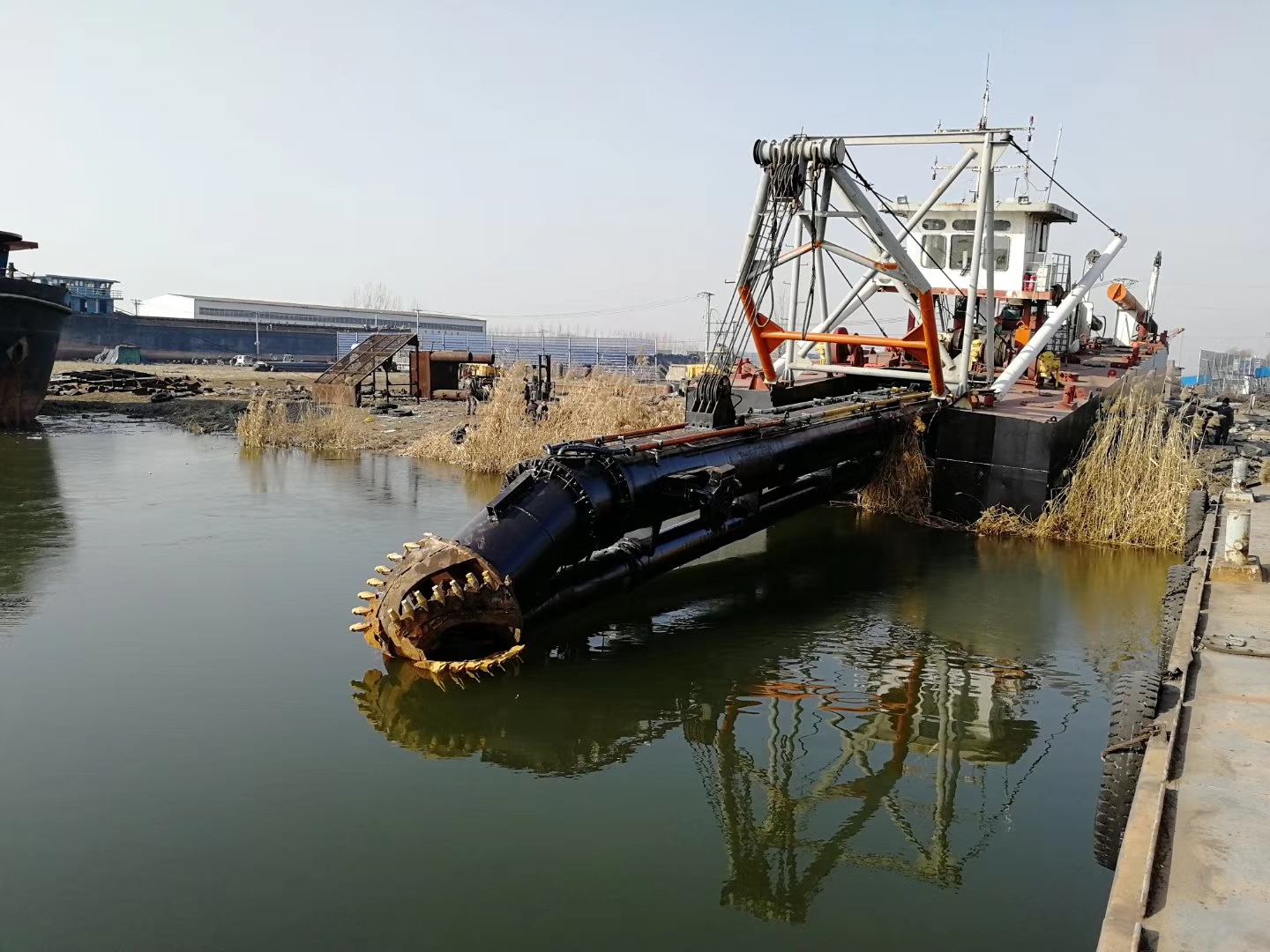

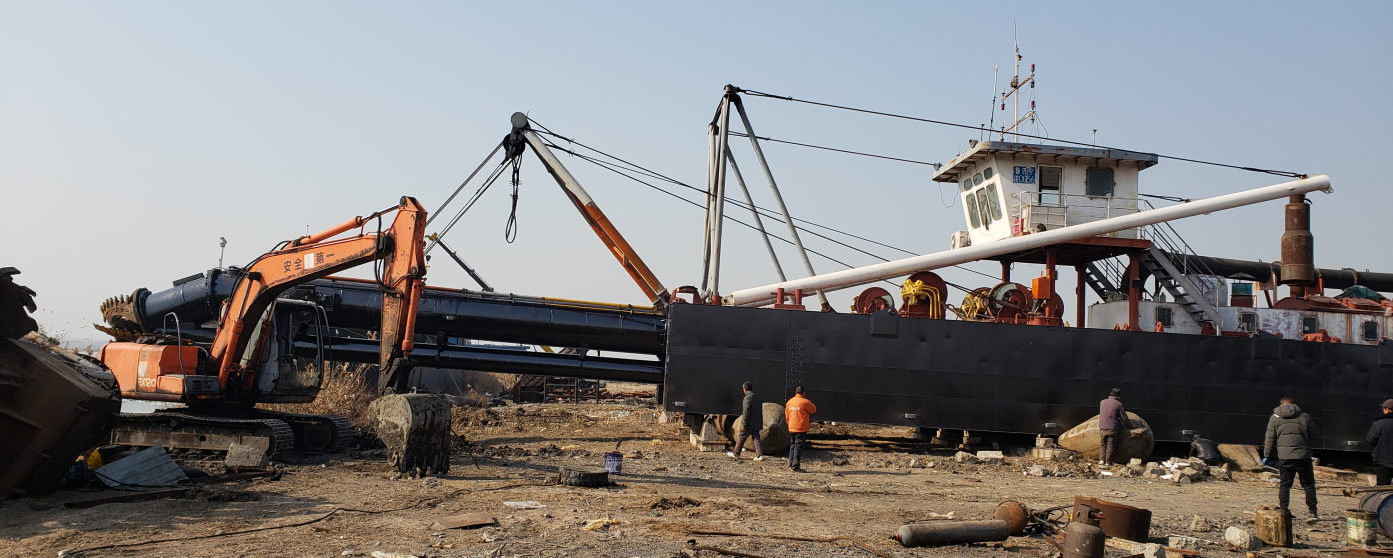

Deliveried to Cutomer for their 500m3/h CSD :









Difference: Cutter Suction Drive Assembly vs. Ladder Box

Scope: System vs. Component

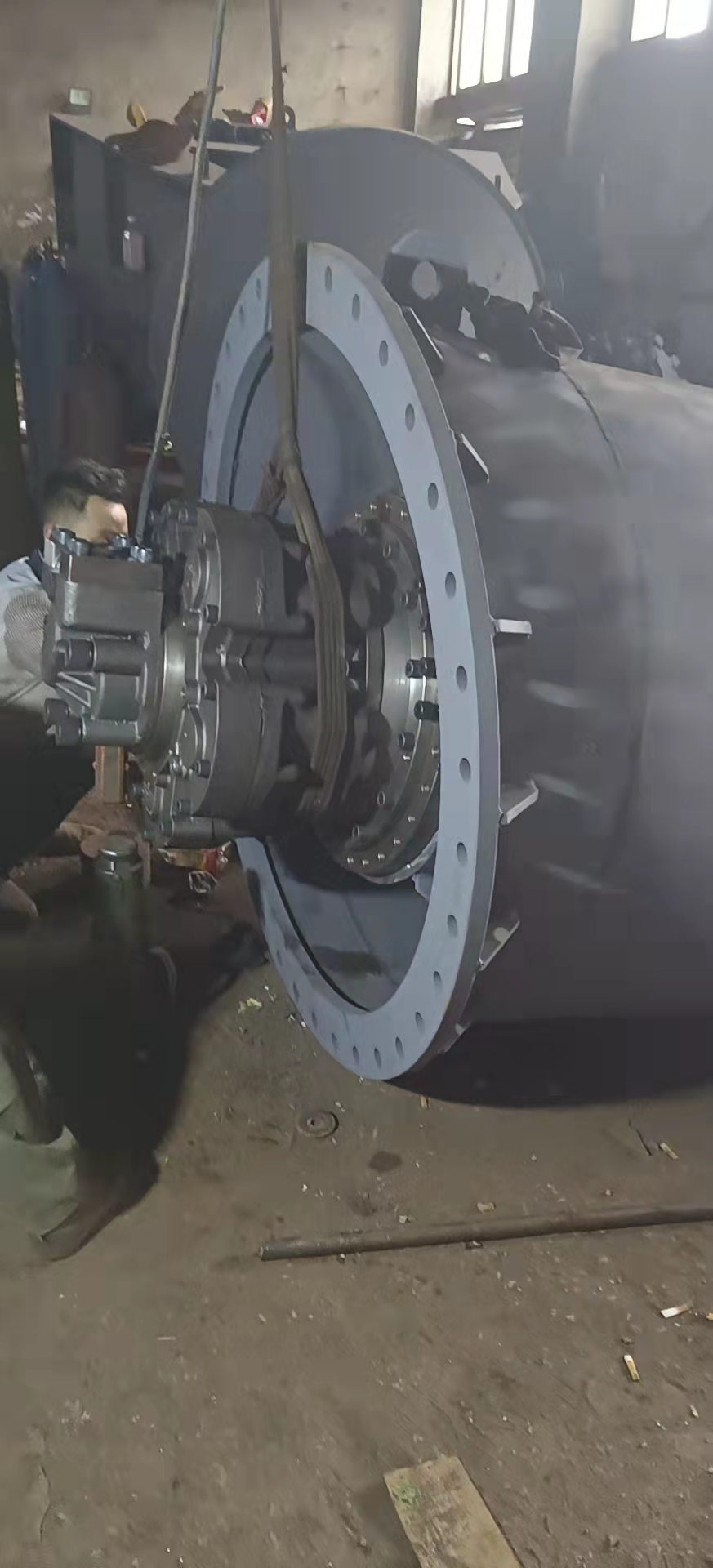

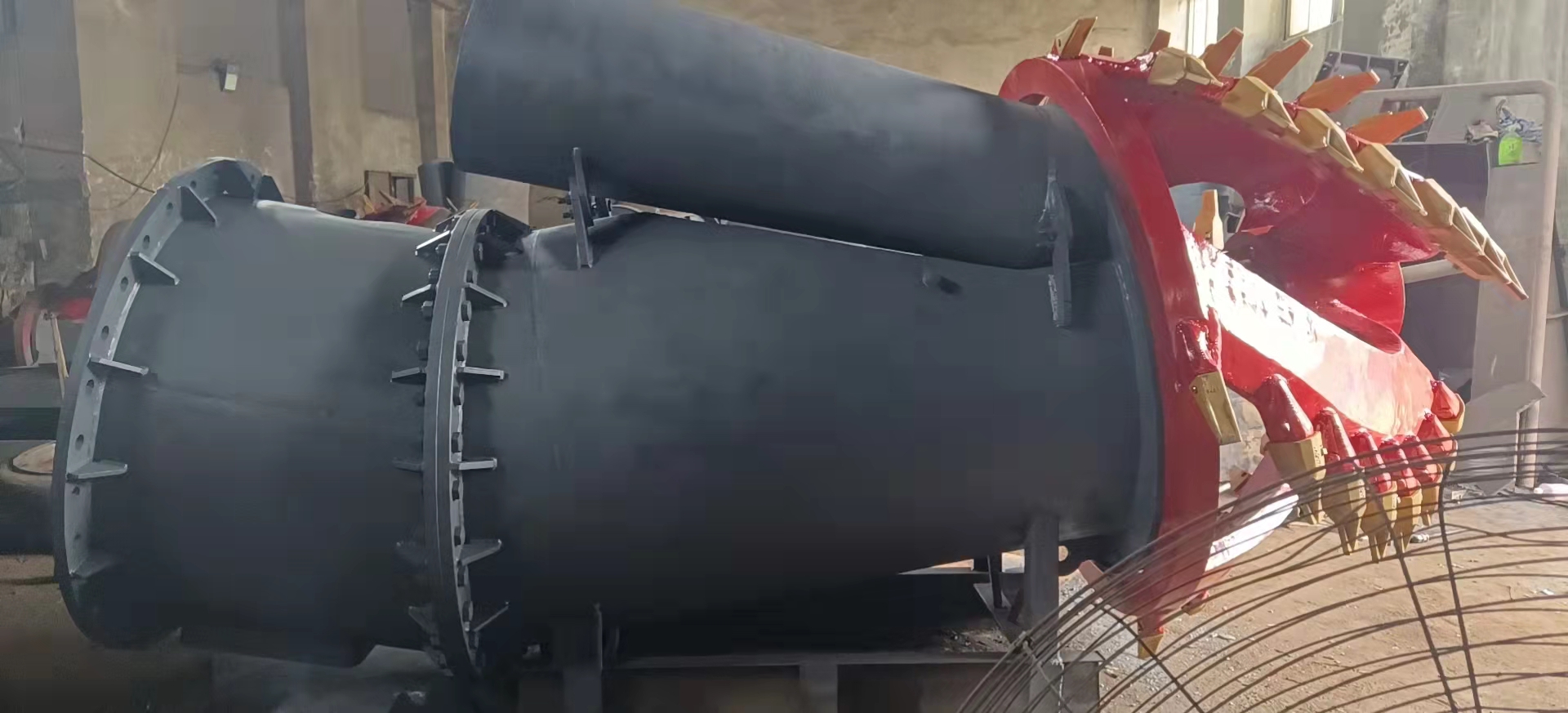

Cutter Suction Drive Assembly (System): This is the complete "power train" system. It encompasses all components that transmit power to rotate the Cutter Head, including the power source (motor/Hydraulic Motor), the Ladder Box, the long shaft within the ladder, the Cutter Gear Box, and all associated couplings and clutches.

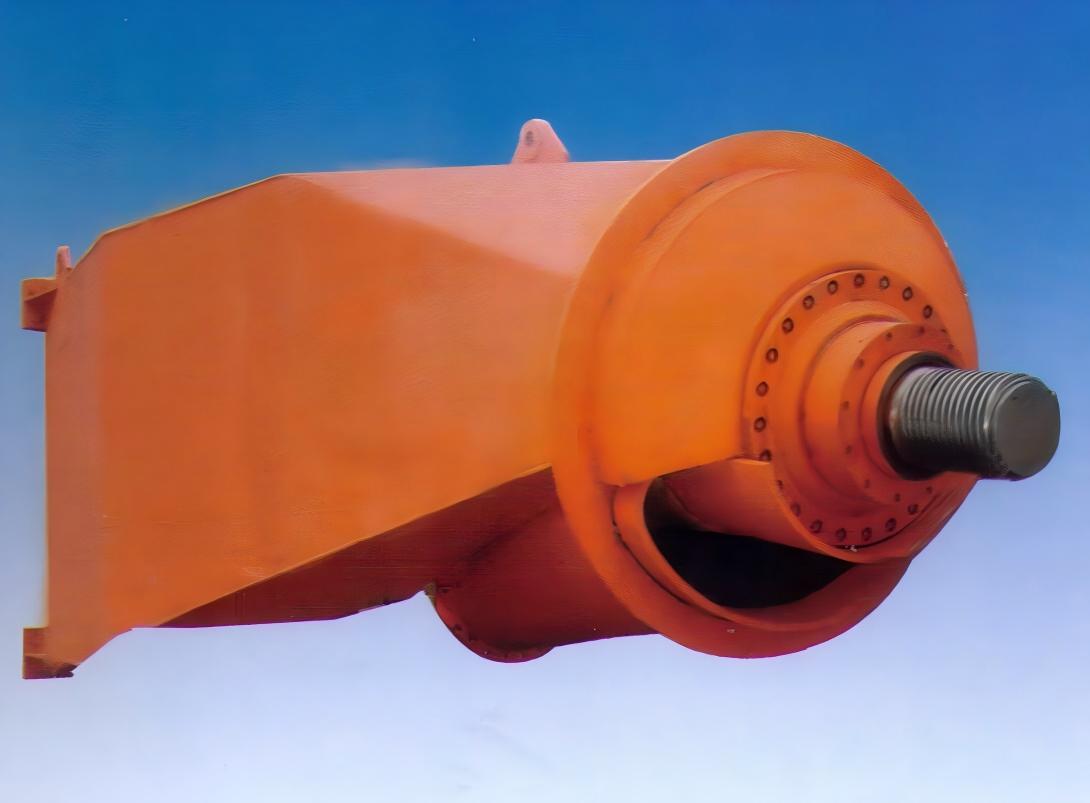

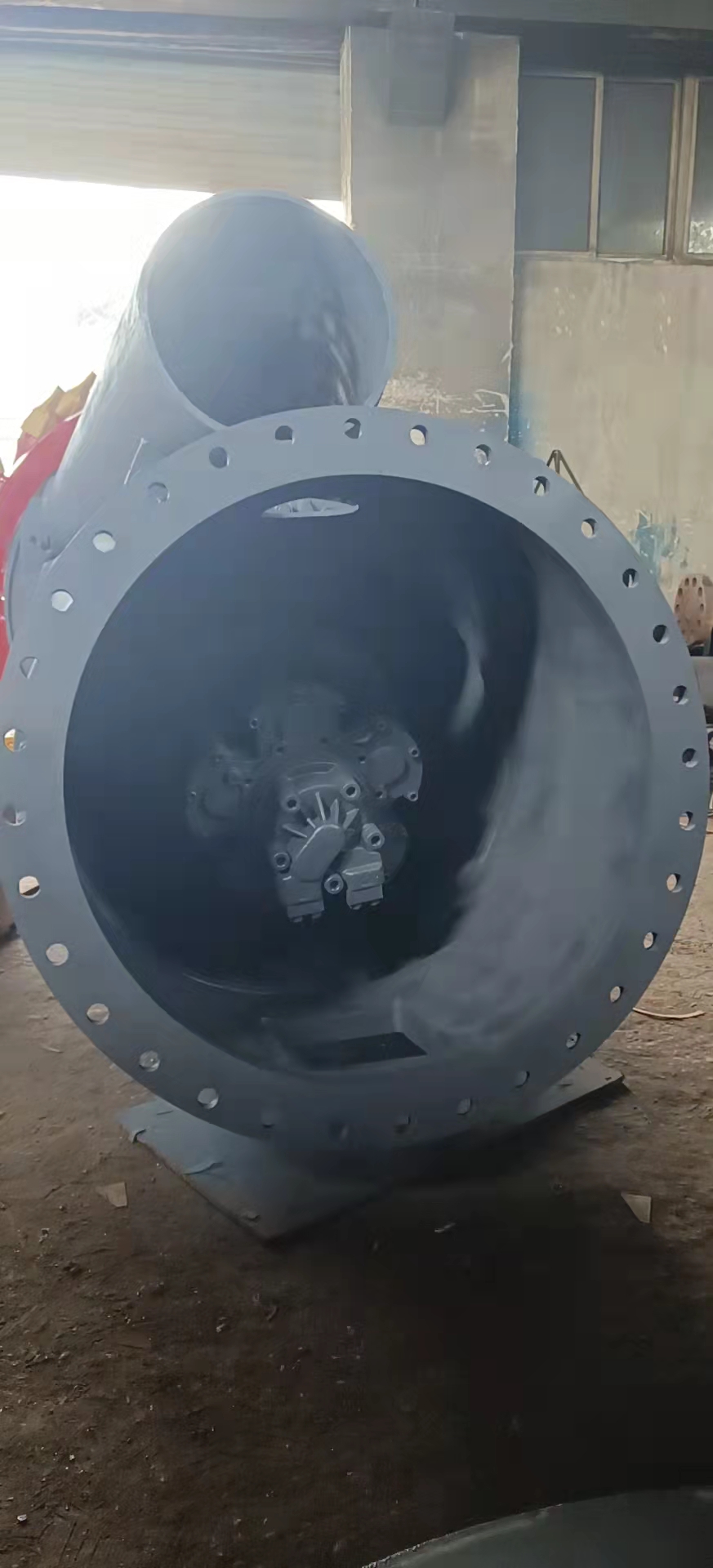

Ladder Box (Component):

This is a single, specific component within the drive assembly. It is a gearbox typically located at the rear of the ladder, near its connection point to the ship's hull.

Function: Overall Goal vs. Specific Task

Cutter Suction Drive Assembly:

Its overall mission is to convert the engine's power into the final rotational torque required for the cutter head to excavate soil.

Ladder Box: Its specific tasks are to receive input power and provide an initial speed reduction. It then transfers this power to the long shaft running through the ladder. Structurally, it often serves as a key pivot point, bearing the weight and lifting forces of the entire ladder.

Power Transmission Flow

Engine/Motor (Power Source)

Ladder Box (Receives power, initial reduction)

Long Shaft (Transmits power through the ladder)

Cutter Gear Box (Final reduction, drives the cutter head)

Cutter Head (Excavates material)

Summary

Purchasing: You buy a Cutter Gear Box or a Ladder Box as individual parts. You purchase a Drive Assembly for the entire integrated system.

Documentation: Drive Assembly is a system-level title on a drawing. Ladder Box is a specific part number within that assembly.

In essence, the Ladder Box is a critical part of the Cutter Suction Drive Assembly.

Why Choose Us

1. End-to-End Expertise: Backed by a professional engineering team and a mature manufacturing facility, we provide a complete turnkey solution. We handle everything from custom design and production to on-site installation and commissioning, ensuring your equipment runs smoothly from day one.



2. Comprehensive Lifecycle Support: We are committed to your long-term success. Our full-service package includes expert guidance on maintenance, repair, and Spare Parts replacement, guaranteeing the sustained performance and longevity of your machinery.



3. Proven Track Record: Our reliability is demonstrated by our results. We have successfully delivered over 10 complete Drive Assemblies and Ladder Boxes, proving our capability to provide high-quality, integrated solutions that meet complex operational demands.



Typical Applications

Port & Channel Maintenance: Efficiently Dredging silt, clay, gravel, and moderately weathered rock to maintain navigational depth.

Land Reclamation & Artificial Islands: Providing stable and continuous power for large-scale soil excavation and filling operations.

River & Environmental Dredging: Enabling precise, clean dredging of bottom sludge for ecological restoration projects.

Frequently Asked Questions:

Q1: Can you provide a complete drive assembly, or just individual gearboxes?

A: We offer both. We can supply a customized Ladder Box as a standalone component or provide the complete Cutter Suction Drive Assembly as an integrated system. This includes the Ladder Box, drive shaft, Cutter Gear Box, and all necessary couplings, tailored to your specific project requirements.

Q2: What is your process for ensuring the system works correctly before delivery?

A: Our professional team utilizes a mature production process. We handle everything from initial design and manufacturing to complete system commissioning. Every assembly undergoes rigorous full-system debugging in our factory to ensure all components operate in perfect harmony before shipment.

Q3: Do you offer support for installation?

A: Yes, we provide comprehensive support. In addition to delivering high-quality equipment, we can dispatch our experienced engineers to the job site to assist with on-site installation and final debugging, ensuring a seamless integration with your dredger.
