1,  We can customize the Cutter Head strictly according to your requirements, base on your details drawings and specifications

2, Alternatively, we can provide a tailored design based on your specific parameters—such as the Dredging pump, hydraulic system, and main engine power.

3, The entire manufacturing and delivery process can be completed within three months including design time (if necessary)



Cutter Head Technical Specification & Operation Manual

1. Product Overview

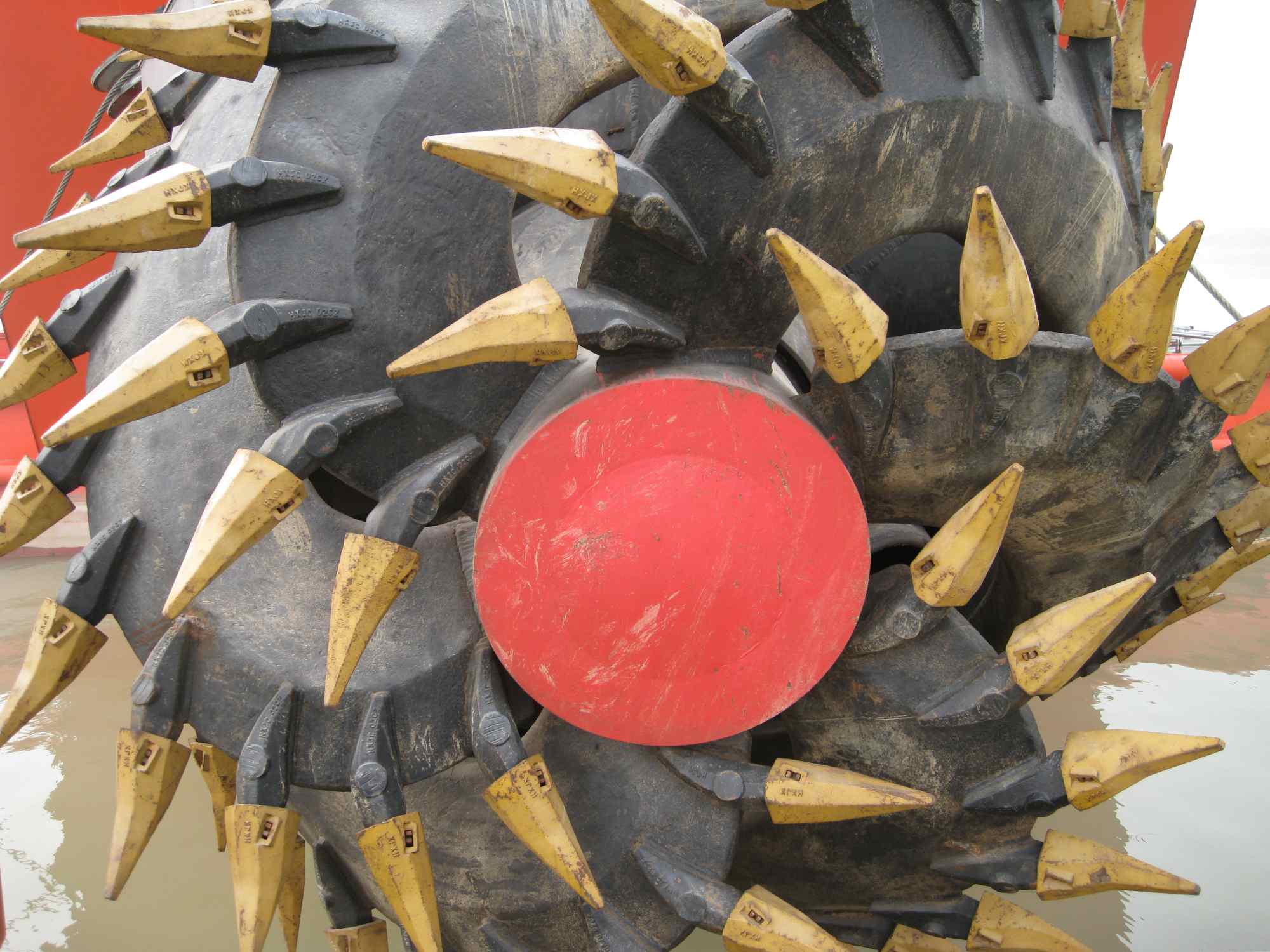

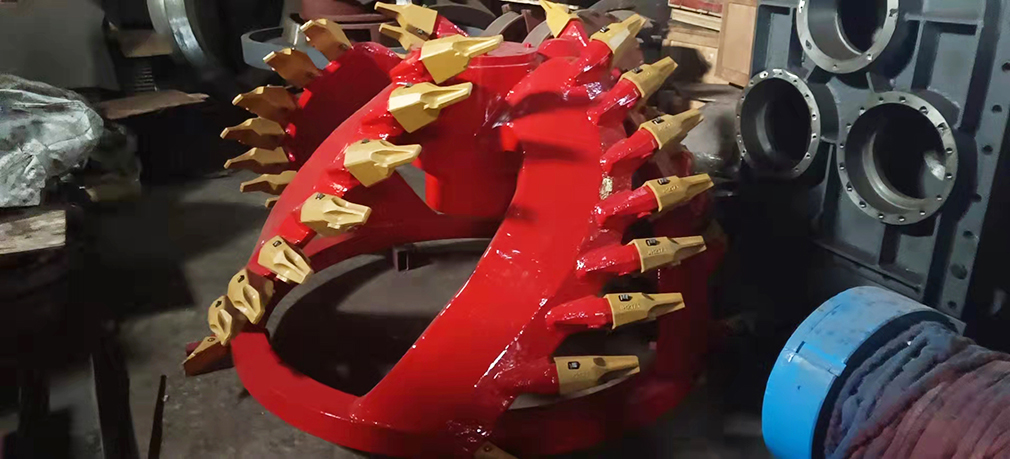

The Cutter Head is the primary excavation tool of a Cutter Suction Dredger, designed to disintegrate soil, sand, and rock formations on the seabed or riverbed. This component features a robust, welded steel construction with replaceable teeth, engineered for high-efficiency cutting and mixing of material with water to create a slurry.

The design utilizes a spiral arrangement of cutting arms to ensure smooth operation, minimal vibration, and uniform wear. It is compatible with a wide range of Dredging Vessels, from small inland workboats to large offshore heavy-duty dredgers.

2. Technical Specifications

The following specifications outline the standard dimensional and operational parameters for the cutter head assembly.

Cutter Diameter Range: 600 mm to 2,500 mm (Customizable based on dredger scale).

Drive Power Compatibility: Suitable for drive powers ranging from 70 kW (small scale) up to 3,000 kW+ (heavy rock cutting).

Rotational Speed: Standard operating speed between 26 to 30 r/min (variable based on soil hardness).

Number of Arms/Blades: Typically 5 or 6 arms, arranged in a spiral pattern for optimal soil flow.

Hub Connection: Heavy-duty flanged connection designed to mate with the cutter shaft gearbox.

Material Composition: High-strength alloy steel casting/welding for the body; high-chromium wear-resistant alloy for teeth.

Weight: Varies by size; approximately 3,000 kg to 15,000 kg for standard heavy-duty models.

Design Standard: Manufactured in compliance with T/CHIDA 06—2023 and relevant ISO maritime standards.

3. Structural Features & Design

Spiral Cutting Geometry: The cutter teeth are arranged according to a spiral equation. This design ensures that the cutting forces are balanced across the face of the cutter, significantly reducing vibration and protecting the dredger's bridge structure.

Replaceable Teeth System: The cutting teeth are mounted on the arms using a retention system that allows for rapid replacement. This minimizes downtime during maintenance.

Wear Protection: Critical wear areas, including the back ring and arm tips, are reinforced with wear plates or hard-facing welds to extend the service life in abrasive environments.

Modular Construction: The hub and back ring are designed to facilitate easy transport and on-site assembly for larger diameter cutters.

4. Operational Guidelines

Rotation Direction: The cutter head is designed to rotate in a specific direction (usually counter-clockwise when viewed from the front) to pull the dredger forward into the cut.

Swing Speed Synchronization: The rotational speed of the cutter (RPM) must be synchronized with the swing speed of the dredger. High RPM with low swing speed can cause "over-grinding," while low RPM with high swing speed can stall the cutter.

Depth of Cut: The vertical depth of the cut should be adjusted based on the hardness of the material. Harder materials require shallower cuts and lower swing speeds.

5. Maintenance & Inspection

Daily Inspection: Check for loose bolts on the teeth holders and inspect the wear condition of the teeth. Replace any teeth that are worn down to the holder body to prevent damage to the cutter arms.

Lubrication: Ensure the cutter shaft bearings (located in the gearbox, not the head itself) are lubricated according to the dredger's main maintenance schedule.

Crack Detection: Perform non-destructive testing (NDT) on the welds of the arms and hub annually or after hitting significant underwater obstructions.

Tooth Replacement: Always replace teeth in sets or balanced patterns to maintain the dynamic balance of the cutter head.

6. Safety Precautions

Lockout/Tagout: Never approach the cutter head while the drive engine is running or the hydraulic system is pressurized.

Lifting Points: Use only the designated lifting lugs on the hub when hoisting the cutter head for installation or removal.

PPE: Personnel performing maintenance on the cutter head must wear appropriate Personal Protective Equipment, including hard hats, safety glasses, and steel-toed boots.

Cutter Head Application & Operational Manual

This document outlines the specific applications, operational parameters, and maintenance protocols for the Cutter Head assembly. It is designed to assist operators and project managers in optimizing dredging performance across various soil conditions.

1. Operational Applications by Soil Type

The efficiency of a cutter head is heavily dependent on matching the correct tool geometry to the specific ground conditions. The following list details the primary applications based on material hardness and composition.

Soft Soil and Silt Removal (Maintenance Dredging)

Application: Used in ports and harbors to remove loose sediment, mud, and soft clay.

Tooling Requirement: Wide chisel teeth or flat teeth are recommended. These provide a large surface area to scoop and mix soft material without penetrating too deeply, ensuring a high production rate.

Sand and Gravel Excavation (Capital Dredging)

Application: Used for land Reclamation projects or trenching where the material is dense and abrasive.

Tooling Requirement: Narrow chisel teeth or conical picks are preferred. These concentrate force to break the tension of compacted sand and gravel layers.

Rock and Hard Clay Cutting (Heavy Duty)

Application: Used in offshore engineering for trenching pipelines or breaking up weathered rock layers.

Tooling Requirement: Heavy-duty rock picks (often tungsten carbide tipped). The cutter head must operate at lower rotational speeds with high torque to fracture the rock rather than grind it.

Environmental Dredging

Application: Precision removal of contaminated layers.

Tooling Requirement: Specialized low-turbulence cutter heads are used to minimize the resuspension of pollutants into the water column.

2. Technical Parameters & Specifications

The following parameters define the operational limits and physical specifications of the cutter head.

Diameter Range: 600 mm to 2,500 mm

Rotational Speed: 26 to 30 r/min (Variable Frequency Drive recommended)

Drive Power: 70 kW to 3,000 kW+

Number of Arms: 5 or 6 (Spiral Arrangement)

Hub Connection: Flanged, heavy-duty steel

Tooth Retention: Mechanical locking system (Pin & Sleeve or Bolt-on)

Material Grade: High-chromium white iron or Alloy Steel (ASTM A532)

3. Operational Guidelines

To ensure maximum efficiency and prevent mechanical failure, operators must adhere to the following guidelines during the dredging process.

Synchronization of Swing and Rotation

The cutter speed (RPM) must be balanced with the swing speed (winch speed).

Rule of Thumb: If the cutter creates fine powder, the RPM is too high or the swing is too slow. If the cutter stalls or vibrates heavily, the swing speed is too high for the current RPM.

Depth of Cut

For hard soils, the depth of cut should be reduced. A deep cut in hard material increases the risk of "slippage" or "rolling" of the cutter head, which damages the teeth and the drive shaft bearings.

Vacuum Control

The suction pump speed must be matched to the cutter production. If the cutter loosens more material than the pump can suck up, the loose debris will fall back into the trench, causing re-handling and efficiency loss.

4. Maintenance and Inspection Checklist

Regular maintenance is critical to extending the lifespan of the cutter head.

Daily Visual Inspection

Check for missing or broken teeth.

Inspect the wear on the back ring and arm tips.

Verify that all locking pins and bolts are secure.

Weekly Lubrication

Grease the cutter shaft bearings according to the manufacturer's schedule.

Check the oil level in the cutter gearbox.

Monthly Structural Check

Perform Non-Destructive Testing (NDT) on the welds connecting the arms to the hub and back ring.

Measure the diameter of the cutter head to check for excessive wear that might affect the cutting geometry.

5. Safety Precautions

Lockout/Tagout: Always isolate the power source and lock out the hydraulic system before approaching the cutter head for inspection or maintenance.

Lifting: Use only the designated lifting points on the hub when installing or removing the cutter head.

PPE: Full personal protective equipment, including safety glasses, hard hats, and steel-toed boots, must be worn at all times near the excavation zone.
