Booster Pump Systems: Floating and Land-Based

1. Brief Introduction

A Booster Pump System acts as the "energy relay" in large-scale Dredging Projects. When the discharge distance or vertical elevation exceeds the capacity of the main dredger (e.g., a Cutter Suction Dredger), the slurry loses pressure due to friction and gravity.

Booster systems are installed in series along the pipeline to re-pressurize the flow, ensuring the material reaches the disposal site. These systems generally fall into two categories based on their deployment environment: Floating Booster Stations (Booster Barges) and Land-Based Booster Stations.

2. Types & Configuration

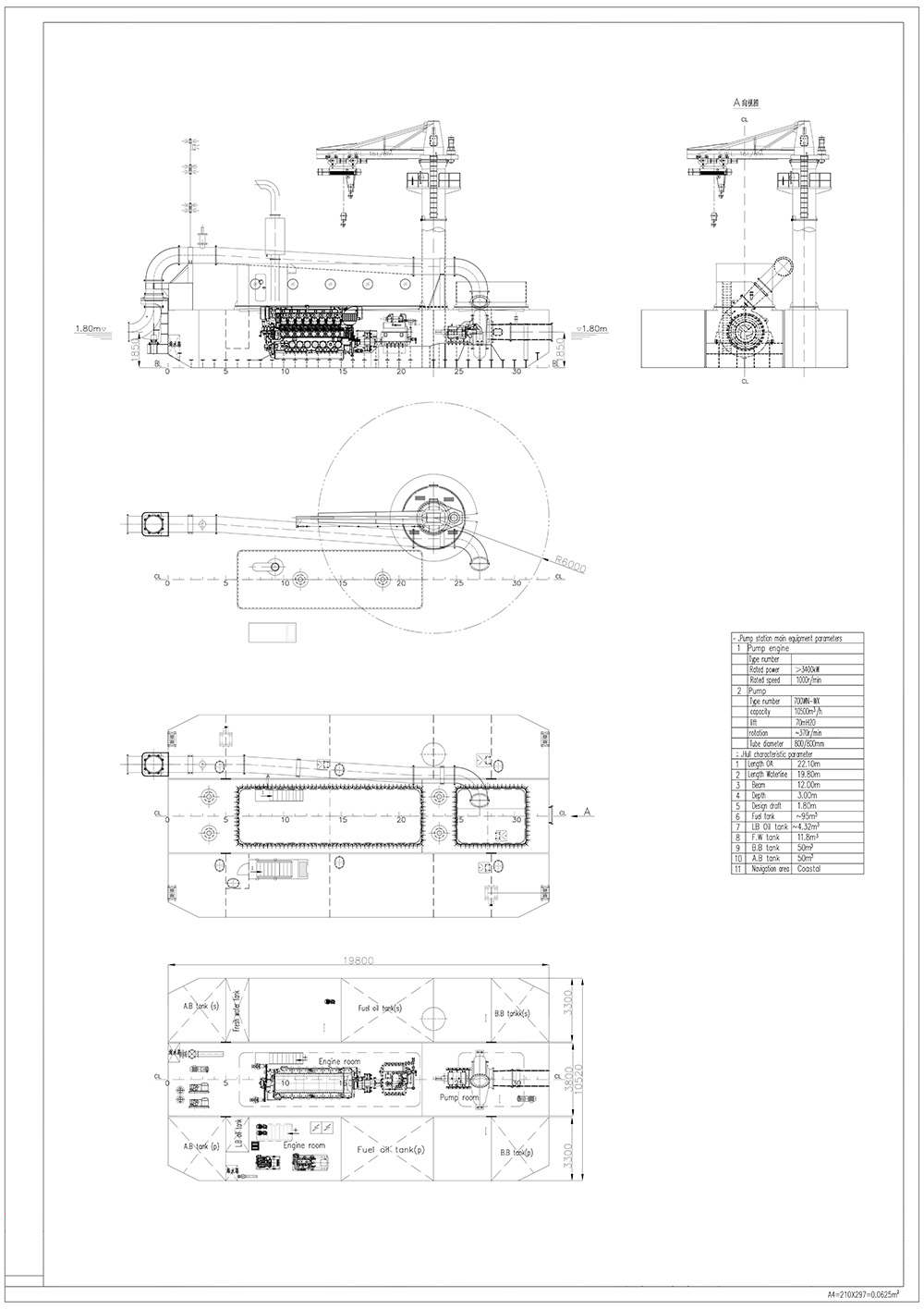

A. Floating Booster Station (Booster Barge)

This is a mobile platform, typically a customized barge or pontoon, equipped with a complete Dredging drive train.

Key Components: It carries the hull, main diesel engines (or Electric Motors), gearboxes, couplings, and heavy-duty booster Pumps. It also includes anchoring systems and fuel tanks.

Characteristics:

Mobility: Highly flexible; can be towed to different locations or repositioned as the dredging face advances.

Integration: Ideally suited for offshore or river projects where the pipeline route changes frequently.

Design: The hull is designed to withstand hydrodynamic forces, and the pump system is often synchronized with the main dredger via a communication link to prevent pressure surges.

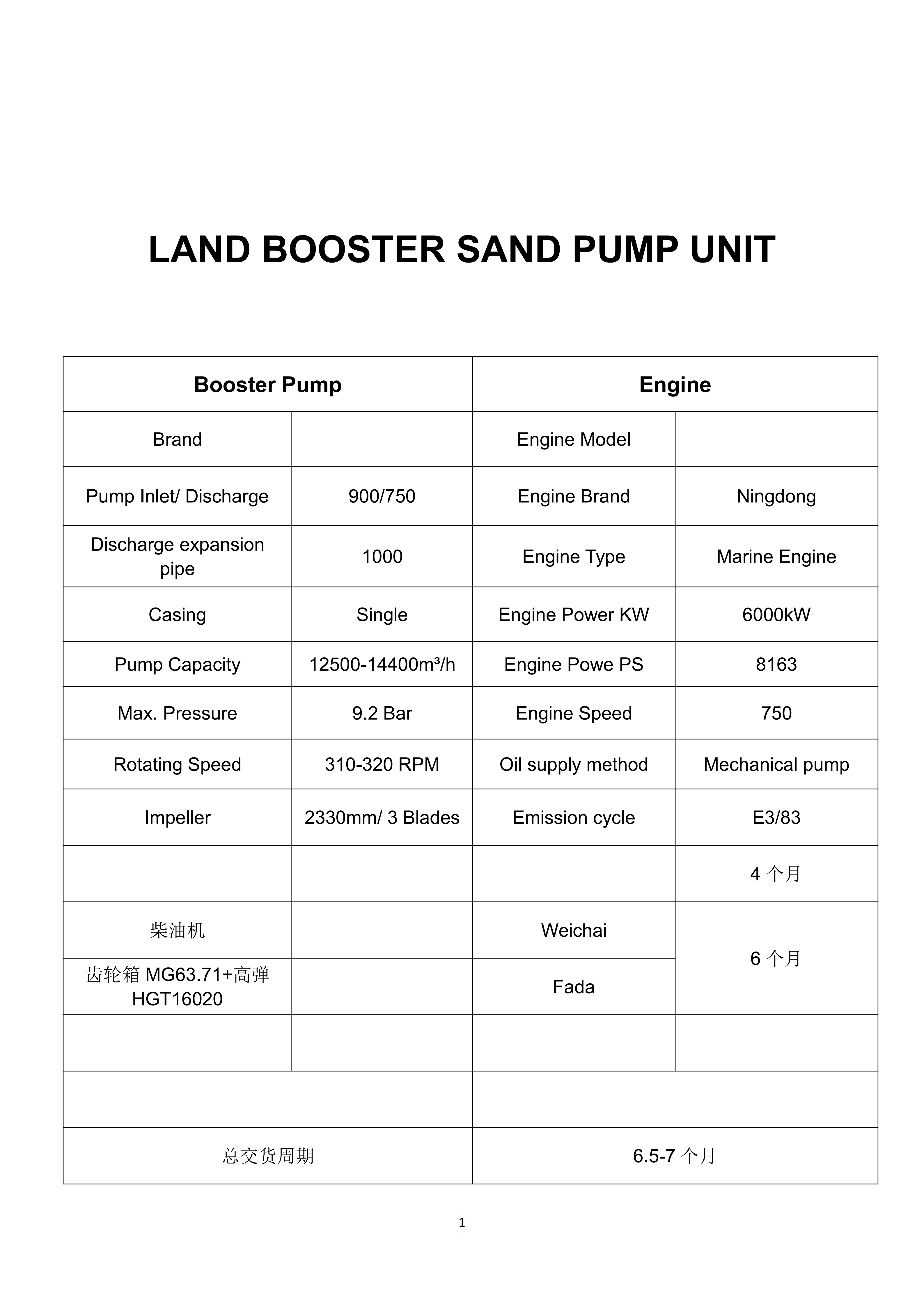

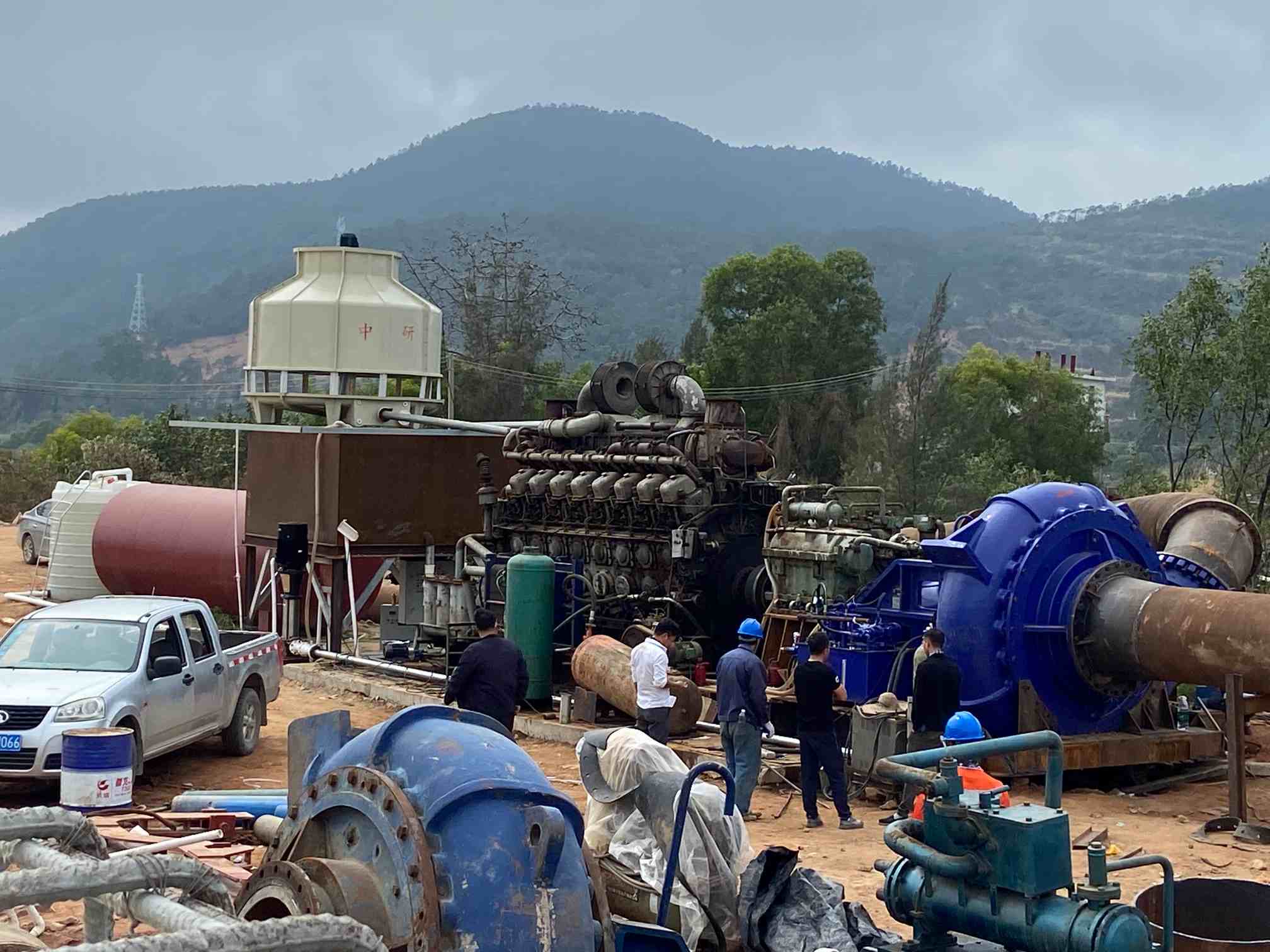

B. Land-Based Booster Station

This is a fixed installation constructed on the ground, often used for very long-distance pipelines that cross varied terrain.

Key Components: It consists of a concrete foundation, steel structure shed, power supply system (grid connection or generators), control room, and pump units mounted on skids.

Characteristics:

Stability: Provides a stable operating environment, less affected by weather or water levels.

Capacity: Can house multiple pumps in series or parallel for extreme pressure requirements.

Infrastructure: Requires civil engineering works (foundation, access roads) and is best suited for permanent or semi-permanent projects.

3. Key Applications

Extending Discharge Distance: The primary use for both types. Floating boosters are often used in the first few stages (e.g., 3km–10km), while land-based stations are added for ultra-long distances (10km–20km+).

Overcoming High Elevation (High Head): Land-based stations are critical when pumping slurry up hills or into high-altitude reservoirs (e.g., overcoming 40m–60m of vertical head).

Adapting to Water Level Fluctuations: Floating boosters are essential in tidal areas or reservoirs with significant water level changes, as the barge rises and falls with the water, maintaining optimal suction conditions.

4. Engineering Cases

Wuhai Lake Ecological Restoration (China)

Configuration: Hybrid System (1 Floating Booster Barge + 5 Land-Based Stations).

Application: The floating barge handled the initial intake and first stage of pressurization on the water, while the land-based stations took over to push the slurry over long distances and high terrain.

Result: Achieved a total transmission distance of 18.5 km and a vertical lift of 40 meters.

Lianyungang 300,000-ton Channel Project

Configuration: Floating Booster Barge (Series connection).

Application: Used in a "Dredger + Booster Barge" setup to transport clay and silt for land Reclamation.

Result: Successfully extended the single-vessel discharge distance to 10.9 km, demonstrating the efficiency of floating boosters in cohesive soil conditions.

Yan'an Wangyao Reservoir Desilting

Configuration: Multi-stage Land-Based Booster System (3 Stations).

Application: Designed to transport silt from the reservoir to a distant stacking area.

Result: Overcame a massive 53-meter elevation difference and a 14 km pipeline length, showcasing the high-pressure capability of land-based systems.
