3000m³/h Cutter Suction Dredger

    3000m³/h Cutter Suction Dredger

    This vessel is a large‑scale hydraulic cutter suction dredger with 3000m³/h productivity. Key parameters: overall length 87.5–90.5m, breadth 16.0m, dredging depth 1.5–28m, discharge distance 4500m, cutter power 2400KW, total installed power ~10,000kW. Equipped with inboard and submersible pumps, positioning pile system, anchor rod system and multi-function winches. It supports manual centralized control and is widely used in port construction, waterway dredging, land reclamation and sediment excavation.
    Category：3000m3/h Cutter Suction Dredger     Browse number：139     Release time：2026-04-07 20:36:34
  • Share：
    • Contact us Inquiry
  • E-mail：Info@yanyangmarine.com
    WhatsApp：15952900547

Specification   3000m3/h Cutter Suction Dredger


Basic Information

  • Type: Non-propelled Cutter suction dredger

  • Built: March 2011

  • Overall Length: 87.50m

  • Hull Length: 68.8m

  • Breadth: 16.00m

  • Molded Depth: 4.8m

  • Light Draft: 2.3m

  • Load Draft: 3.1m

  • Light Displacement: 2138.85Ton

  • Load Displacement: 2760.75Ton

  • Crew: 29 persons

  • Endurance: ≥300h

Performance

  • Dredging Depth: 1.5–28m

  • Productivity: 3000m³/h

  • Discharge Distance: 4500m

  • Discharge Height: 4.0m

  • Suction Pipe Diameter: 900mm

  • Discharge Pipe Diameter: 850mm




Main Equipment

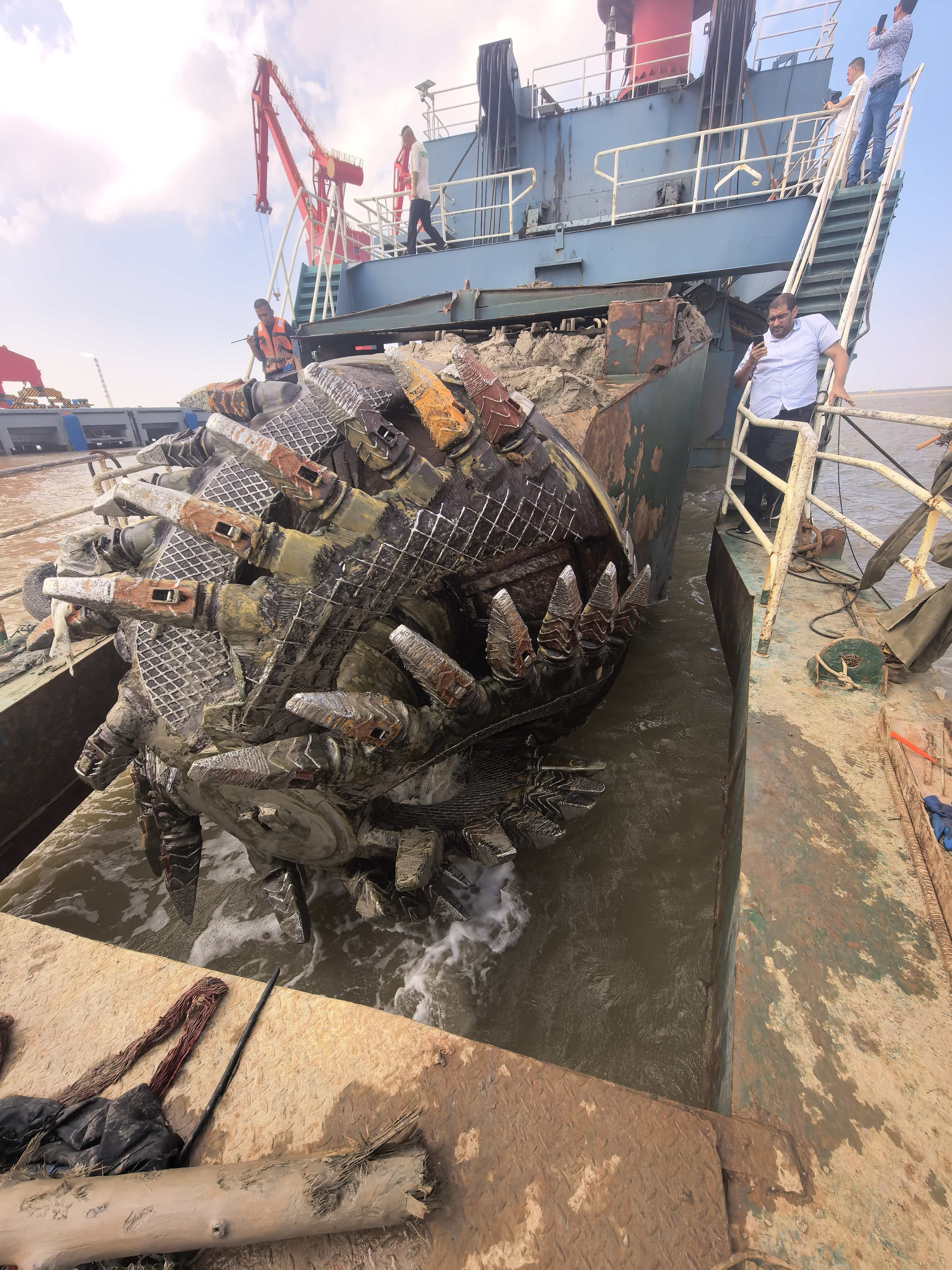

  • Cutter Power: 2400KW

  • Inboard Pump: 800WN, 12500m³/h, 2800KW

  • Submersible Pump: 800WNQ-WX, 12500m³/h, 1600KW

  • Inboard Pump Engine: 16V280ZC, 3700KW

  • Submersible Pump Engine: 12V280ZC, 2700KW

  • Hydraulic Cutter Engines: 2×XCW8200ZC (928KW), 1×XCW12V200ZD-1 (1440KW)

  • Positioning Piles: 2×Ø1.5×38.8m, ~70t each

  • Winches: Ladder, Swing, Anchor, Stern Mooring

Control System

  • Cabin centralized manual operation

  • Engine room / remote control switch

  • Emergency stop function

  • Multi-position control for submersible pump





  • Applications

  • 300,000 DWT port construction and maintenance dredging

  • Inland waterway and channel dredging

  • Coastal Reclamation and land formation

  • Clay, compact sand and hard soil excavation

  • River and harbor sediment removal

  • Advantages

  • High productivity: 3000m³/h, efficient sediment discharge

  • Strong adaptability: dredge 1.5–28m depth, handle Class V soil

  • Powerful cutter: 2400KW for hard soil and rock fragments

  • Long discharge: 4500m remote sediment delivery

  • Stable positioning: positioning pile and anchor rod system

  • Reliable power: total installed power over 10,000kW

  • Easy operation: centralized control with emergency functions

  • FAQ

  • Q:What is the production capacity?A:3000 cubic meters per hour.

  • Q:What is the maximum dredging depth?    A:28 meters below water level.

  • Q:How far can it discharge sediment?    A: Up to 4500 meters.

  • Q:What is the cutter power?    A: 2400 kilowatts.

  • Q: What soil types can it dredge?    A: Clay, compact sand and Class V hard soil.



  • Q:What is the total installed power?A: Approximately 10,000kW.
