Type: Non‑self‑propelled floating crane, coastal service
Classification: ZC approved

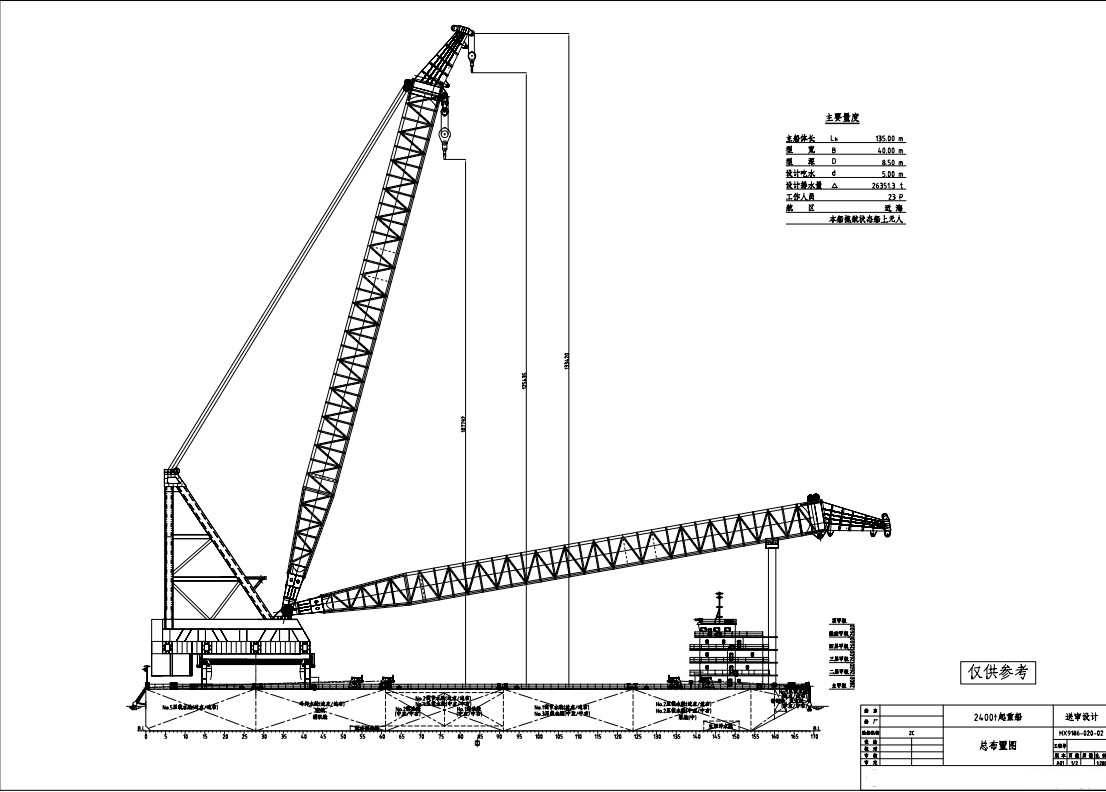

Main Dimensions: Length 135m, Breadth 40m, Depth 8.5m, Draft 5.0m
Displacement: 26,351.3 tonnes
Tonnage: GT ~14,997; NT ~4,499
Accommodation: 23 + 21 persons
Crane Capacity:
Main hook (fixed): 2400t
Main hook (revolving): 2000t
Aux hook: 800t
Rigging hooks: 30t / 10t
Lifting Height: Main hook 103m; Aux hook 125m
Lifting Speed: Main 0–2.5m/min; Aux 0–3.5m/min
Power System: AC690V, max power 3360kW
Counterweight: Concrete + water ballast adjustable
Offshore Wind turbine installation and maintenance
Large bridge construction and piling
Shipbuilding and ship repair
Port construction and heavy cargo handling
Offshore platform installation
Salvage and wreck removal
Coastal heavy engineering projects
PROJECT CASE : Offshore Wind Turbine Installation
Offshore wind turbin installation
Ultra‑heavy lifting capacity: Fixed 2400t / Revolving 2000t for super‑large components
Stable and reliable: Strong hull structure, optimized ballast system and excellent stability
Flexible working modes: Fixed and full‑revolving lifting available
Multi‑hook configuration: Main, aux and rigging hooks for various operations
High efficiency: Smooth speed control, precise positioning and short working cycle
ZC certified: Fully compliant with coastal navigation and lifting regulations
Comfortable accommodation: Suitable for long‑term offshore missions
Strong adaptability: Ideal for complex heavy lifting in coastal and offshore areas
Q1: What is the maximum lifting capacity?
A: Fixed: 2400 tonnes; Revolving: 2000 tonnes.
Q2: What navigation area is allowed?
A: Coastal navigation area.
