1. Industry Insight:
The End of the Nuclear Era, Non-Nuclear Technology Becomes the New Mainstream in Dredging Measurement
For decades, radioactive (gamma/ray) density meters have been the traditional solution for online monitoring of slurry density in dredging projects. While they offer advantages such as non-contact operation and adaptability to harsh working conditions, with the global tightening of radioactive source regulations, soaring safety operation and maintenance costs, measurement drift caused by radioactive source decay, and insufficient accuracy at low concentrations, the industry's demand for green and safe alternative solutions has shifted from "optional" to "mandatory".
In recent years, non-nuclear measurement technologies represented by electrical resistance tomography, radio frequency electromagnetic waves, ultrasonic resonance, and non-isotope X-ray have undergone multiple full-scale vessel verifications and technical iterations.
They have achieved large-scale commercial application in cutter suction dredgers, trailing suction hopper dredgers, and tailings/sludge transportation scenarios, completely breaking the monopoly of nuclear technology and forming an irreversible industry pattern of full withdrawal of nuclear sources and dominance of non-nuclear technology.
The core value of non-nuclear technology lies not only in completely eliminating radiation safety risks, but also in significantly optimizing the full life cycle cost: no radiation license required, no professional nuclear instrument operation and maintenance team needed, no frequent calibration, no radioactive source decommissioning and disposal costs. Meanwhile, it meets new industry requirements such as vessel green classification and ecological environmental protection certification, driving the dredging industry to transform from "passive compliance" to "active green development".
2. In-Depth Interpretation of Core Technical Routes
Current mainstream non-nuclear slurry density measurement technologies have formed four mature technical routes, each with distinct technical advantages and applicable scenarios:

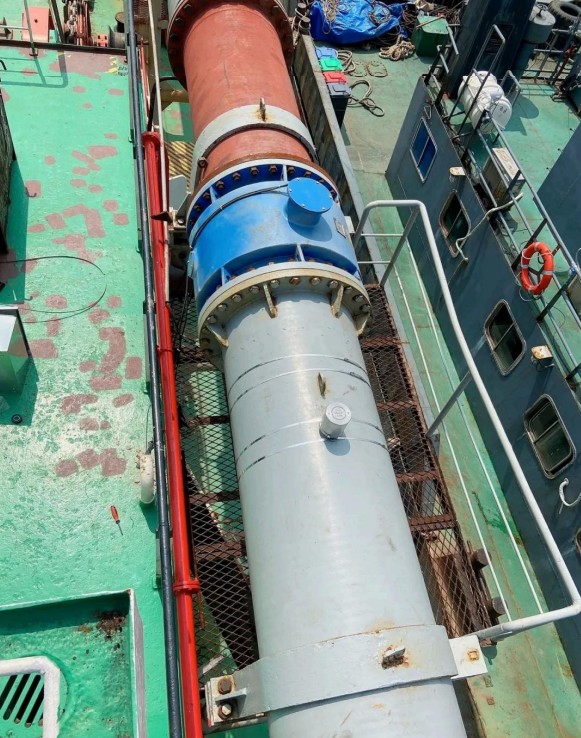

Electrical Resistance Tomography / Conductivity Distribution Technology
This technology obtains cross-sectional conductivity distribution through an electrode array mounted on the outer wall of the pipeline, reconstructs a 3D concentration model via dedicated algorithms, and realizes non-destructive detection of slurry solid-phase concentration. With high measurement accuracy (up to 0.5%), it supports cross-sectional imaging and flow pattern monitoring, is compatible with both seawater and freshwater media, and adapts to large-diameter, ultra-high flow rate working conditions. It can be extended to applications in mining tailings, municipal sludge and other scenarios, making it a high-end preferred solution for large ocean-going dredgers.
Radio Frequency / Radio Wave Time Delay Technology
Leveraging the physical property that the propagation speed of electromagnetic waves in slurry varies with solid content, this technology calculates density through nanosecond time delay detection. It is intrinsically safe (low-voltage power supply), requires no radiation license, and its installation is not restricted by pipeline orientation. With accuracy superior to traditional nuclear density meters, it balances mechanical wear resistance and signal stability, and has achieved mass commercial application in inland dredgers, suitable for various dredging working conditions.

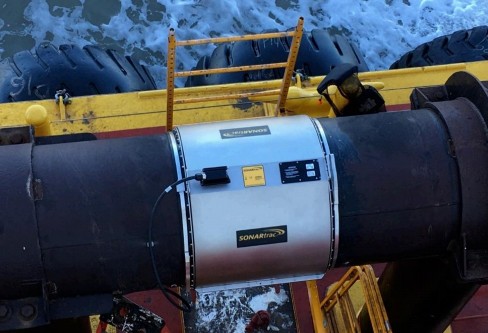

Non-Contact Ultrasonic / Resonance Measurement Technology
Adopting clamp-on installation, this solution requires no pipe cutting, no wear, and no leakage risk. Its measurement is not affected by soil properties and medium characteristics, with no commissioning or frequent calibration needed, and a long service life. The equipment is radiation-free, requires no special license, features easy installation and low full life cycle cost, making it the mainstream popularization solution in the domestic dredging market, suitable for rapid retrofitting of small and medium-sized vessels and newbuilding supporting.
Special In-Situ Measurement Technology
Targeted at port and waterway sediment density detection scenarios, this technology adopts non-isotope X-ray or impact penetration dynamics principles to achieve accurate calculation of sludge density, sediment layer thickness, and dredging volume. The X-ray solution avoids traditional radioactive source regulatory restrictions, with accuracy up to 0.25%; the impact-type equipment is lightweight and anti-interference, suitable for small vessels and manual operation at terminals, focusing on pre-dredging survey and post-construction effect evaluation.
3. Technical Selection Guide: Match Working Conditions for Precise Selection
Combined with the needs of different dredging project scenarios, targeted selection suggestions are provided to help enterprises make efficient decisions:
For large ocean-going dredgers and high-end newbuilding supporting:
Electrical resistance tomography or radio frequency technology is recommended, featuring high accuracy, visualization, and strong long-term stability, adapting to complex ocean-going working conditions.
For inland river, small and medium-sized dredging projects and vessel retrofitting:
Non-contact ultrasonic/resonance technology is the optimal choice, with high cost performance, rapid installation, and low operation and maintenance cost, meeting core measurement requirements.
For port and waterway survey, sediment monitoring, and dredging volume accounting:
Special in-situ measurement technology is selected to ensure the accuracy of survey and construction effect evaluation.
Core Selection Principle:
Follow the guideline of Safety First, Non-Contact Priority, Working Condition Adaptation, Intelligent Compatibility, while matching equipment installation conditions, operation and maintenance capabilities, and vessel digital upgrade plans, and prioritizing technical solutions that have passed full-scale vessel verification and have a mature after-sales system.
4. Future Trend Outlook
With the in-depth penetration of sensor technology, edge computing and the Internet of Things, non-nuclear density meters will continue to iterate towards multi-parameter integration, intelligence, and integration: upgrading from single density measurement to integrated perception of density, flow rate, gas content and flow pattern, seamlessly connecting with intelligent dredging monitoring systems, supporting shore-based remote control and unmanned operation.
Meanwhile, they will further improve adaptability to extreme working conditions, extend to miniaturization and low cost, fully covering the entire dredging process and cross-industry scenarios, providing core perception support for ecological and intelligent dredging.
FAQs
1. What is a non-nuclear density meter, and how is it different from traditional nuclear density meters?
Non-nuclear density meters measure slurry density using electrical resistance tomography, radio frequency (RF), ultrasonic resonance, or non-radioactive sensors, without any radioactive source. Traditional nuclear density meters rely on gamma rays, which bring radiation risks, strict licensing, and high maintenance costs.
2. Why is the dredging industry replacing nuclear density meters with non-nuclear solutions?
Eliminates radiation safety risks
No radioactive license or special management required
Stable measurement (no decay drift over time)
Lower lifecycle cost (no source replacement or disposal)
Meets green ship certification and environmental requirements
3. Can non-nuclear density meters achieve the same accuracy as nuclear density meters?
Yes. Mature non-nuclear technologies can reach 0.25%–1% accuracy, which is equal to or better than nuclear density meters. They have passed long-term shipboard verification in actual dredging projects.
4. What technical routes are available for non-nuclear slurry density measurement?
Mainstream routes include:
Electrical resistance tomography (ERT)
Radio frequency (RF / electromagnetic wave time delay)
Non-contact ultrasonic / resonance technology
In-situ X-ray or dynamic penetration measurement
5. Are non-nuclear density meters difficult to install?
Most are non-contact, clamp-on type — no pipe cutting, no welding, no process shutdown. They can be installed on horizontal or vertical pipelines and are suitable for new vessels and retrofits.
6. Do non-nuclear density meters require frequent calibration or maintenance?
Generally no frequent calibration and minimal maintenance. They have long service life (up to 15 years) and are highly stable in harsh dredging environments (vibration, moisture, wear).
7. Which vessels and working conditions are non-nuclear density meters suitable for?
They are widely used on:
Cutter suction dredgers
Trailing suction hopper dredgers
Inland river dredgers
Tailings and municipal sludge transportation systems
Port and waterway sediment survey
8. Can non-nuclear density meters connect to the ship’s control system?
Yes. They support 4–20 mA, digital communication, and cloud platforms, and can be integrated with DCS, ship monitoring systems, and remote intelligent dredging platforms.
9. Is it worth retrofitting existing nuclear density meters to non-nuclear systems?
Yes. Retrofitting improves safety, reduces compliance costs, extends equipment life, and supports green certification. Most retrofits can be completed quickly with minimal downtime.
10. What is the future trend of density measurement in dredging?
The industry is moving toward:
Full replacement of nuclear sources
Non-contact, maintenance-free design
Multi-parameter integrated sensing (density + flow + gas content)
Intelligent and remote monitoring
