Classification, Structure and Selection Guide for Dredging Floating Pipes

General Introduction

Dredging floating pipes refer to the floating pipeline systems composed of dredging pipes and floats/buoys, which are key equipment for waterborne mud discharge operations of cutter suction dredgers, trailing suction hopper dredgers and other dredging vessels. Their core function is to support heavy discharge pipes on the water surface by buoyancy, so as to transport slurry to designated areas and ensure continuous and efficient dredging operations.

According to core structure, buoyancy source and application scenario, dredging floating pipes (floating discharge pipelines) are uniformly divided into three mainstream types, abandoning messy subdivisions and following a clear, non-overlapping classification logic from major categories to subcategories. The detailed explanation is as follows:

I . Category 1: Integral Self-Buoyant Pipes (Built-in Buoyancy, No External Floats Required)

Core Features: Buoyancy is integrated into the internal structure of the pipe body, with a neat and smooth appearance and low water flow resistance. They feature fast on-site installation, eliminating the process of installing and fixing floats one by one, and can maintain stable floating both when empty and fully loaded with slurry.

1. Self-Buoyant Rubber Hoses (Most Commonly Used in the Industry, Preferred for Flexibility, Relatively High Cost)

This is the most mature and widely used self-buoyant product in the dredging field, suitable for complex water areas and dynamic operation scenarios, with multiple targeted sub-models:

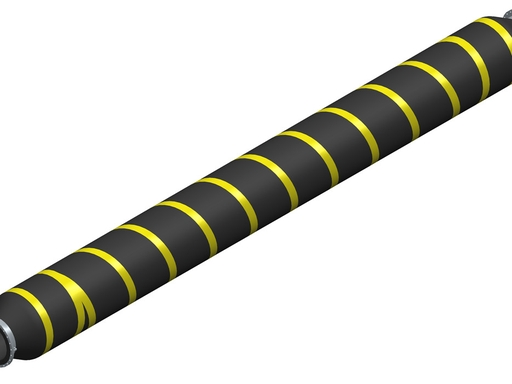

• Full Self-Buoyant Rubber Hose:

Structure: Multi-layer composite integrated molding, consisting of inner rubber layer, high-strength fiber reinforcement layer, built-in closed-cell foam buoyancy layer, wear-resistant outer protective layer and flange connection end.

Features: Full-time buoyancy when empty or full, excellent bending flexibility, seawater corrosion resistance, slurry wear resistance, wave impact resistance, and adaptability to frequent pipeline swinging.

Application: Bow blowing section of cutter suction dredgers, short-distance waterborne mud discharge, offshore areas with large waves, and flexible connection swinging section at the stern of dredgers.

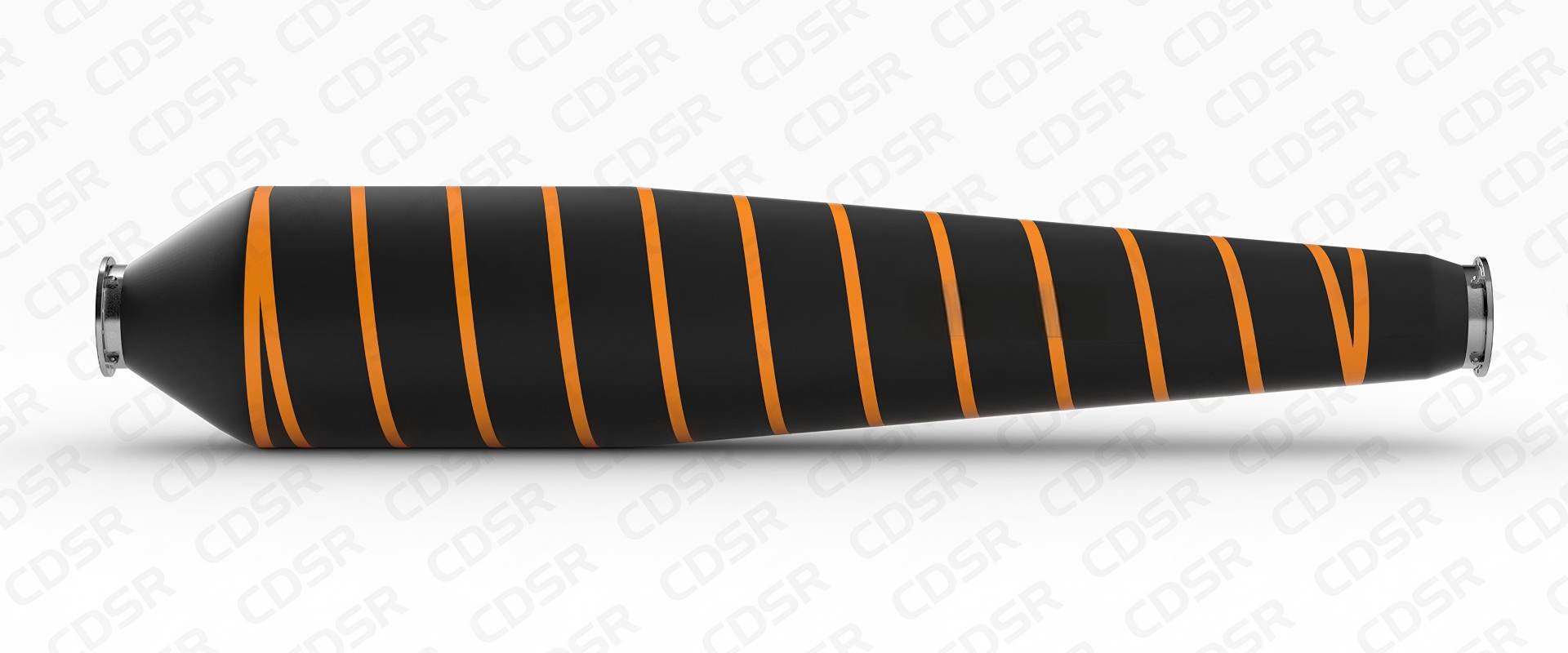

• Tapered Self-Buoyant Rubber Hose:

Structure: Gradual diameter design at both ends of the pipe body, with linear buoyancy distribution along the pipe, adapting to marine hydrodynamic characteristics.

Features: Excellent hydrodynamic performance, greatly reducing wave slamming impact and pipeline shaking amplitude, and enhancing floating stability.

Application: Open sea areas and long-distance offshore mud discharge pipelines.

• Single/Dual-Body Self-Buoyant Rubber Hose:

Single-body type: General basic model, meeting conventional dredging and mud discharge needs with moderate cost performance;

Dual-body type: Built-in dual buoyancy cavities, providing greater buoyancy, significantly improving pipeline torsion resistance and overall stability, suitable for severe sea conditions.

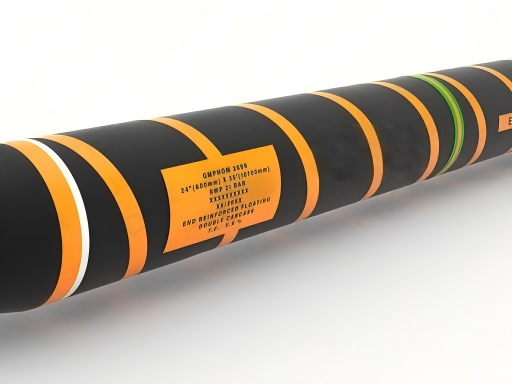

• Catenary Self-Buoyant Hose:

Structure: The middle section of the pipe body naturally sags in a catenary shape, with a special elastic buoyancy layer design.

Features: Adaptable to large hull displacement and large wave fluctuations, outstanding fatigue and tensile resistance, avoiding hard pulling and fracture of pipelines.

Application: Flexible connection section of bow blowing for large offshore dredgers, and dynamic operations in high-wave water areas.

2. HDPE Self-Buoyant Plastic Pipes (Integral Hollow/Core-Filled Self-Buoyant, Rigid Self-Buoyant Pipes)

Core Distinction: Only specially designed double-layer co-extruded/core-filled HDPE pipes are included, with the inner layer for slurry transportation and the outer layer wrapped with closed-cell foam material or designed with a hollow interlayer buoyancy cavity, which are real self-buoyant rigid pipes; Ordinary single-layer solid-wall HDPE pipes sink when fully loaded and do not belong to this category.

Features: Integral hollow self-buoyancy, light weight, acid and alkali corrosion resistance, smooth inner wall with low slurry transportation resistance, no rust hidden danger, and extremely low later maintenance cost.

Limitations: Higher cost than ordinary steel pipes, weak external pressure and collapse resistance, lower pressure resistance than steel pipes, not suitable for ultra-high pressure and ultra-large flow slurry transportation.

Application: Inland river, lake and shallow sea light dredging projects with high environmental protection requirements, long-distance linear laying and no frequent disassembly required.

II.  Category 2: Steel Pipes + External Floats (Rigid Float-Supported Type, Mainstream for Large Caliber with Low Cost)

Core Features: The main pipe body is ordinary steel pipe without self-buoyancy, relying on externally installed floats to provide buoyancy. It belongs to a float-supported floating system, focusing on large caliber, high pressure resistance and large flow transportation, with controllable cost, making it the first choice for large-scale dredging projects.

Unified Classification: All forms of steel pipes matched with external floats belong to float-supported floating pipes (external float type), divided into two subcategories according to float structure, with no independent major category distinction:

Core Differences Between Two Subcategories of Float-Supported Floats (Both External Floats, Great Differences in Structure and Installation)

Commonality: Both are HDPE float + steel pipe combinations, providing buoyancy through hoop bolt fixation, no self-buoyancy, and belong to the rigid float-supported system;

Core Differences: The opening and closing mode of floats, installation logic and applicable scenarios are completely different, and they are by no means the same product. The specific differences are as follows:

Subcategory 1:
Integral Float-Supported Type (Integral Closed Type, Preferred for Long-Term Fixed Use)

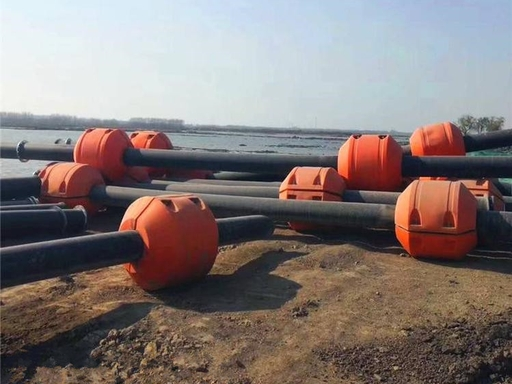

• Steel Pipe + HDPE Integral Float (Current Mainstream):

Structure Details: Semi-closed integral rotomolded float, only with a single-side opening reserved. Steel pipes must be inserted through the float port in advance and then fastened with hoops and bolts. The float body is a complete closed structure, filled with high-density closed-cell foam with uniform and sufficient buoyancy.

Core Features: High overall structural strength, stronger resistance to wave pulling and impact, not easy to loosen or shift after fixation, seawater corrosion resistance, aging resistance, no later maintenance required, service life of several years, stable buoyancy, specially suitable for large-caliber steel pipes.

Key Difference: Must be installed by pipe insertion first and fixation later, belonging to embedded installation for long-term fixed layout dredging projects, unable to be quickly disassembled and reused.

Application Scenarios:

1. Long-term fixed dredging projects with a construction period of several months to several years, no frequent pipeline disassembly and transfer required; 2. Offshore and coastal areas with large waves, high requirements for pipeline structural stability and impact resistance;
3. Large-caliber (DN600 and above), high-flow and long-distance mud discharge projects with high bearing pressure;
4. Permanent dredging pipelines, regular port and waterway dredging, land reclamation and other fixed operation points;
5. Projects with high requirements for pipeline safety and durability, avoiding frequent float replacement and maintenance.

• Steel Pipe + Steel Float (Obsolete Outdated Type):

Structure: Welded steel plate, filled with foam buoyancy material, with simple anti-corrosion treatment on the surface.

Features: Heavy self-weight, easy to rust and corrode, high later maintenance frequency and cost, gradually replaced by HDPE floats, only used in a small number of simple inland projects.

Subcategory 2:

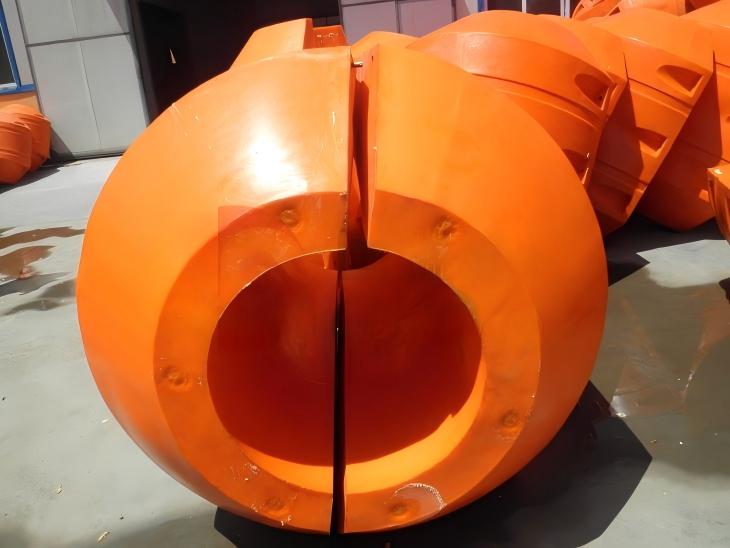

Hoop/Jacket Type Float-Supported Type (Full Split Clamping Type, Preferred for Temporary Transfer)

Structure Details: The float adopts a fully split two-half structure, directly clamped on the outer side of the steel pipe like a clip without pre-insertion. After clamping, it is quickly locked with buckles or bolts, and the float can completely wrap the outer wall of the steel pipe with strong buoyancy adaptability.

Core Features: Extremely fast installation and disassembly, no need to disassemble the existing steel pipe pipeline throughout the process, detachable at any time and reusable across scenarios, adaptable to steel pipes of various outer diameters without precise single-caliber matching, super convenient for emergency transfer and temporary supplementation.

Key Difference: Fully split design, no pipe insertion required, ready to install and use, slightly lower structural strength than the integral type, suitable for short-term temporary projects, not for long-term fixed use in severe sea conditions.

Application Scenarios:

1. Short-term temporary dredging projects with a construction period of several days to several months, requiring immediate disassembly and transfer after completion;
2. Emergency rescue dredging, sudden river channel dredging, temporary port mud discharge and other rapid entry projects;
3. Existing laid steel pipe pipelines requiring temporary buoyancy installation without disassembly and insertion;
4. Inland rivers, lakes and other calm water areas with small waves, no need to resist strong wave impact;
5. Projects with mixed calibers, flexible pipeline layout and reusable floats;
6. Small-scale dredging operations and scattered dredging points pursuing installation efficiency and construction cost control.

III. Category 3: Semi-Submersible Floating Pipes (Underwater Suspension, Specialized Rare Type)

Core Features: A special customized float-supported pipeline, designed to suspend the whole pipe 1-3m below the water surface through precise buoyancy calculation, without exposing above water, rarely used in conventional projects.

Structure: Steel pipe as the main slurry transport body, matched with customized buoyancy floats, with designed buoyancy slightly less than the total weight of the pipe and slurry to achieve stable underwater suspension.

Features: Completely free from water surface wave interference, excellent pipeline stability, no impact on water navigation, and avoiding UV aging.

Limitations: Difficult installation and commissioning, inconvenient later maintenance and repair, relatively high cost.

Application: Busy navigation channels, long-distance offshore mud discharge, and specialized dredging projects with strict requirements for water navigation and landscape.

IV. Simplified Classification by Material and Buoyancy Mode

1. Self-Buoyant Type (Integral, Built-in Buoyancy)

• Self-Buoyant Rubber Hose: Excellent flexibility, bending fatigue resistance, impact resistance, suitable for dynamic operations and complex water areas; Limitation: Lower pressure resistance than steel pipes, service life affected by long-term UV exposure.

• HDPE Self-Buoyant Pipe: Corrosion resistance, light weight, smooth inner wall with low slurry transportation resistance, integral hollow self-buoyancy, environment-friendly and rust-free; Suitable for small and medium calibers, corrosive medium transportation or water areas with high environmental protection requirements.

2. Float-Supported Type (External Float, No Self-Buoyancy)

• Integral Float-Supported Type: Steel Pipe + HDPE Integral Float (Mainstream), Steel Pipe + Steel Float (Obsolete Outdated Type)

• Hoop/Jacket Type Float-Supported Type: Split HDPE Float, quick clamping, no pipe insertion required, reusable

• HDPE Pipe + HDPE Integral Float

Ordinary single-layer solid-wall HDPE pipes have no self-buoyancy and will sink when fully loaded with slurry, so they must be equipped with external       floats to float on water, and this combination is also classified as the float-supported type.

V.  Core Selection Points for Engineering Scenarios (Direct Practical Reference)

• Inland River/Small and Medium-Sized Dredging Projects: Prioritize self-buoyant rubber hoses + combined HDPE floats, balancing flexibility and cost with convenient installation

• Coastal/Large-Flow Dredging Projects: Prioritize steel pipes + HDPE integral floats, more stable for large-caliber, high-pressure and long-distance transportation

• Open Sea/High-Wave Areas: Select tapered self-buoyant rubber hoses and catenary self-buoyant hoses with strong adaptability to severe working conditions; semi-submersible floating pipes can be equipped for special navigation requirements

• Temporary Projects/Frequent Transfer: Directly select hoop/jacket type floats and self-buoyant rubber hoses, fast disassembly and reusable

• Large-Scale Projects with Large Caliber (DN600+): The only preferred solution is steel pipes + external HDPE floats, with irreplaceable bearing capacity and pressure resistance

VI.  Additional Precautions

• Connector Inspection: Bolts and gaskets of floats must be inspected regularly to prevent float falling off due to vibration loosening.

• Spacing Layout: Floats are not evenly distributed on the pipeline; they usually need to be densely arranged at joints and bends to bear additional stress.

• Aging Monitoring: Although HDPE floats are aging-resistant, long-term UV exposure will still reduce their strength. It is recommended to conduct a buoyancy test every 3-5 years.
