Configuration of Dredging Instruments, Monitoring System and Operation Technology of Cutter Suction Dredger

I. Core Dredging Instrument Configuration (Hardware Foundation)

Dredging instruments are the "senses" of a vessel, mainly divided into three categories: process monitoring, equipment condition monitoring, and positioning & navigation.

1. Process Monitoring Instruments (Core Indicators)

1.1 Electromagnetic Flowmeter

Measures the average flow velocity of slurry in the pipeline based on Faraday's law of electromagnetic induction. It consists of a transmitter (installed on the pipeline)
and a converter, serving as the basis for output calculation.

1.2 Concentration Meter (Density Meter)

Mainstream type: Gamma-ray concentration meter. It calculates the density by detecting the attenuation of gamma rays emitted by radioactive isotopes after passing through the slurry.

Environment-friendly type: Ultrasonic concentration meter or differential pressure concentration meter. Suitable for areas with extremely high environmental protection requirements such as drinking water sources, with no radiation risk.

1.3 Output Meter (Earthwork Calculation System)

Collects flow velocity and concentration signals, calculates instantaneous output and cumulative output in real time, and automatically records and prints data.

1.4 Pressure Gauge and Vacuum Gauge

Monitor the discharge pressure of the dredge pump and the vacuum degree of the suction pipe respectively. The vacuum gauge prevents cavitation of the dredge pump, and the pressure gauge prevents pipeline blockage, serving as key indicators for judging suction performance.

2. Equipment Condition and Attitude Monitoring

2.1 Cutter Drive Monitoring

Equipped with torque sensors, power meters and rotational speed sensors to monitor cutting load in real time, judge soil hardness and prevent overload.

2.2 Cutter Depth Position Indicator

Synthesizes data such as bridge angle, vessel draft and tide level to display the excavation depth in real time.

Environmental Protection and Environmental Monitoring: Equipped with anemometers, clinometers (roll/pitch sensors). A turbidimeter is specially configured to monitor sediment diffusion during excavation and meet environmental construction requirements.

3. Positioning and Navigation System

Positioning methods: Mainly adopt DGPS (Differential Global Positioning System) or BDS (BeiDou Navigation Satellite System).

BDS is widely used domestically with a positioning accuracy of ±2cm, and can be combined with 3D sonar scanning to identify underwater terrain.

Attitude Correction: Correct the impact of vessel attitude on excavation accuracy using heading and inclination sensors.

II. Dredging Monitoring System and Intelligent Control (Software Brain)

Dredging monitoring systems can be divided into basic type, extended type and new-generation intelligent systems according to technical level and functional depth.

1. Basic Dredging Monitoring System

Composed of the following subsystems:

• Dredging trajectory and profile display system

• Equipment control and monitoring system

• Monitoring and alarm system

• Dredging instruments and meters

2. Extended Dredging Monitoring System

On the basis of the basic type, the following subsystems are added:

• Automatic dredging control system

• Dredging auxiliary decision-making system



3. New-Generation Intelligent Dredging System (Technical Trend)

Modern advanced systems (such as "Tian Kun Hao", "Jun Lan" and other vessels) have the following characteristics:

Three core modules: Intelligent dredging control (automatic optimization), intelligent navigation control (3D visualization), intelligent energy efficiency management (fuel consumption optimization).

Intelligent functions:

• Automatic optimization: Use AI algorithms (such as neural networks) to automatically adjust cutter rotational speed and traversing speed according to soil properties, realizing "one-key dredging".

•
  Digital twin: Establish a 3D model synchronized with the actual vessel to deduce the dredging process in real time with a delay of less than 200ms.

•
  Fault diagnosis: Capable of intelligent identification and handling of abnormal working conditions, significantly shortening fault response time.

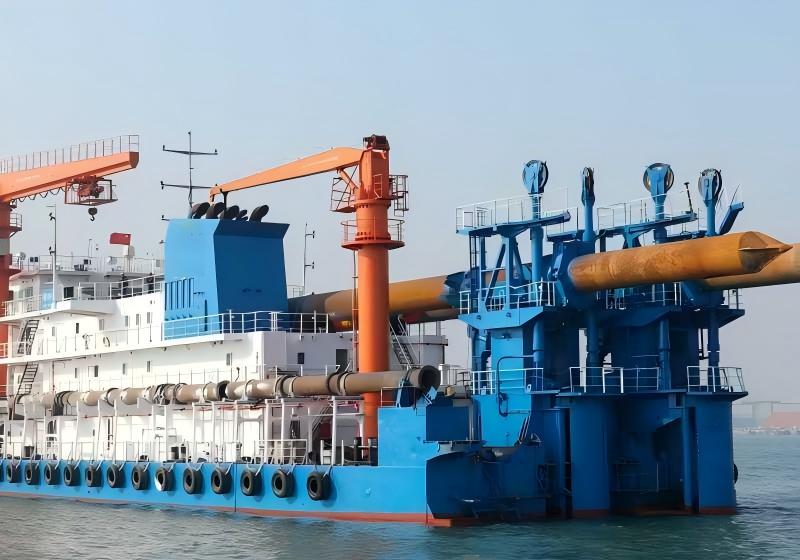

III. Technical Performance and Vessel Classification

The cutter suction dredger is currently the most widely owned type of dredger in the world.

1. Key Parameters and Output Improvement Measures

Main parameters: Nominal productivity, total installed power, dredge pump/cutter power, suction and discharge pipe diameter, digging depth, discharge distance, etc.

Output improvement measures: To increase digging depth and suction capacity, the dredge pump should be installed as low as possible inside the vessel, or a submersible pump should be mounted on the cutter ladder, which can significantly improve deep-water dredging output.

2. Vessel Classification (By Total Installed Power)

Cutter suction dredgers with different technical parameters vary greatly in production capacity.

The smallest cutter suction dredgers have a productivity of 40~80m³/h, a dredge pump power of about 70kW, a cutter power of nearly 10kW, and a maximum digging depth of only a few meters.

Modern large-scale cutter suction dredgers have a dredging output of over 6500m³/h. At present, the world's largest cutter suction dredger has a total installed power of 44,180kW, a maximum digging depth of 45m, and can be powered by LNG.

Cutter suction dredgers are classified into four levels according to total installed power (N):

• Small cutter suction dredger: N < 5,000kW

• Medium cutter suction dredger: 5,000kW ≤ N < 10,000kW

• Large cutter suction dredger: 10,000kW ≤ N < 20,000kW

• Extra-large cutter suction dredger: N ≥ 20,000kW



IV. Positioning and Approach Methods

Non-self-propelled dredgers are generally towed by tugs to enter the construction area using the following methods:

•
  DGNSS Positioning Method: Currently the main positioning method.

• Leading Mark Positioning Method: Set longitudinal leading marks, transverse start and end marks, and turning marks.

• Intersection Positioning Method: Forward intersection by theodolite and plane table, rear intersection by sextant.

• Radio Positioner Positioning Method.

• Laser Range Finder Positioning Method.

V. Construction Methods and Technological Requirements

1. Selection of Construction Methods

Selection shall be based on equipment performance (steel piles, trolleys, cable configurations) and construction conditions (soil properties, water area, precision):

•
  Symmetrical Steel Pile Traversing Dredging Method: Suitable for vessels equipped with symmetrical double steel piles.

•
  Steel Pile Trolley Traversing Dredging Method: Suitable for vessels equipped with trolleys and double steel piles. Features: High positioning accuracy, large reaction force, especially suitable for narrow waters, rock or hard soil excavation, and foundation trench excavation.

•


• Three-Cable Positioning Traversing Dredging Method: Suitable for vessels equipped with positioning devices. Ideal for wide waters with heavy wind and waves, soft soil and low precision requirements.

•


• Single Pile Double Anchor Four-Cable Construction Method: Suitable for vessels equipped with trolleys, single steel pile and three-cable devices, used in narrow waters or high-precision excavation.

•
  Anchor Cable Traversing Dredging Method: Suitable for vessels only equipped with anchor cable devices.

2. Construction Technological Requirements (Strip Width Principles)

For anchor rod anchoring (steel pile/three-cable method):

•
  Normal conditions: Strip width = horizontal projection length from the center of steel pile/three-cable column to the front end of the cutter.

• Hard soil/high flow velocity: Narrow appropriately.

• Soft soil/downstream flow: Widen appropriately.

• For anchor boat anchoring (steel pile/three-cable method):

• Normal conditions: Strip width = 1.1 times the above projection length.

• Hard soil/high flow velocity: Narrow appropriately.

• Soft soil/downstream flow: Widen appropriately.

• For anchor cable positioning method: Strip width shall not be greater than 50% of the main anchor cable length (reduced for rapid mountain rivers).

Summary: A complete dredging system of cutter suction dredger is a comprehensive engineering system based on flow, concentration and output monitoring, guaranteed by torque, pressure and vacuum monitoring, combined with high-precision BDS/DGPS positioning, and gradually developing towards intelligent automatic optimization and green environmental protection construction.
